Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range797 To 803 MHz
-
ColorSilver
-
Low Insertion Loss2.0 To 3.0 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-800M-6M-3838
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
800MHz RF SAW Band Pass Filter
800MHz RF SAW Band Pass Filter
Product Overview
The LT-SF series RF SAW Filter is a high-performance band pass filter designed for wireless communication applications, featuring aluminum housing and excellent rejection characteristics.
Key Features
- Frequency range: 797 to 803 MHz
- Low insertion loss: 2.0 to 3.0 dB
- Operating temperature: -40℃ to +85℃
- Compact surface mount package (3.8x3.8x1.35mm)
- High rejection: 17 to 40 dB
- Aluminum housing for durability
- CE, RoHS, and REACH compliant
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|

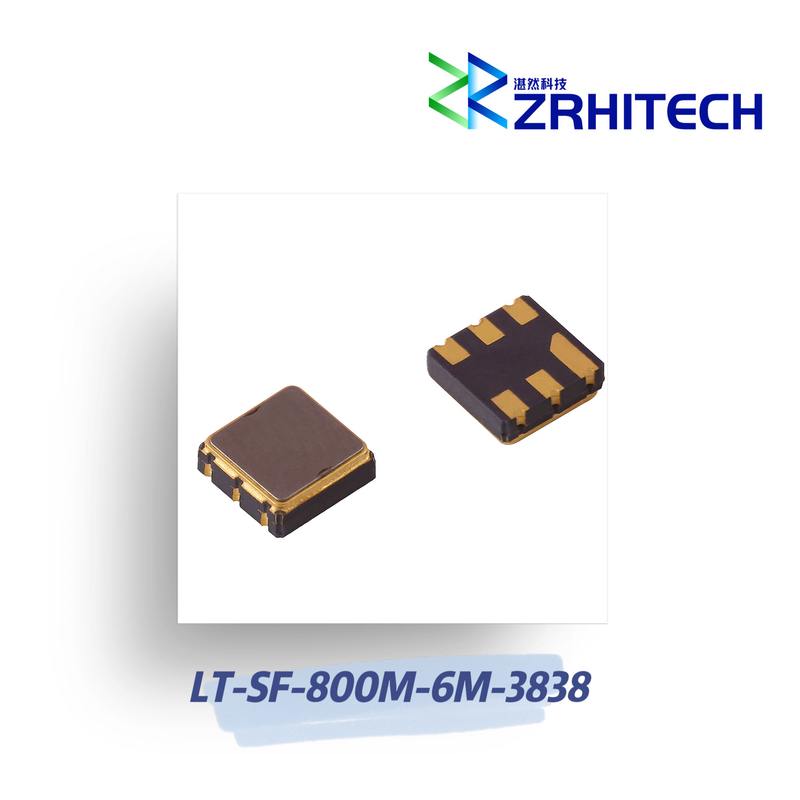

| Part Number | LT-SF-800M-6M-3838 | |
| Center Frequency | 800MHz | |
| Insertion Loss | 3.0dB Max.; 2.0dB Typ. | 797.00~803.00MHz |
| Ripple in Bandwidth | 1.0dB Max.; 0.7dB Typ. | |
| Group Delay Variation | 30ns Max.; 10ns Typ. | |
| Input VSWR | 2.0 Max.; 1.5 Typ. | |
| Output VSWR | 2.0 Max.; 1.5 Typ. | |
| Attenuation | 40dB Min.@DC-780MHz 33dB Min.@820.00~1000.00MHz 17dB Min.@1000.00~1800.00MHz 40dB Min.@1800.00~2500.00MHz 35dB Min.@2500.00~3000.00MHz |
|
| Dimension | 3.8x3.8x1.35mm |
Note: Custom specifications available upon request.
Product Dimensions
Applications
This RF SAW filter is ideal for various wireless communication systems requiring precise frequency filtering in the 800MHz range.
