Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range1296 To 1304 MHz
-
ColorSilver
-
Low Insertion Loss2.4 To 4.5 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-1300M-10M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

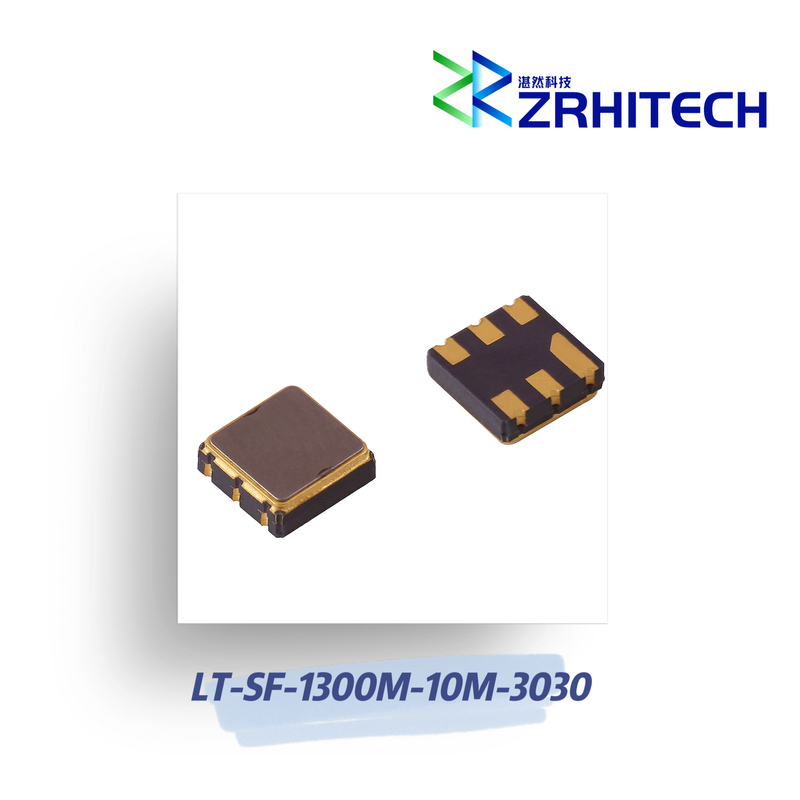

SMT RF SAW Bandpass Filter 1300MHz Cavity
1300MHz LT-SF series RF SAW Band Pass Filter
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Sourface Mount Package
· Small Size
· Low Cost
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-SF-1300M-10M-3030 from ZR is a Band Pass Filter with Frequency 1296 to 1304 MHz, Bandwidth 8 MHz, Center Frequency 1300 MHz, Insertion Loss 2.4 to 4.5 dB, Rejection 22 to 40dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-1300M-10M-3030 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SF-1300M-10M-3030 | |
| Center Frequency | 1300MHz | |
| Insertion Loss | - | |
| Insertion Loss(1296.00~1304.00 MHz) | 4.5dB Max.; 2.4dB Typ. | |
| Ripple in Bandwidth | 1.6dB Max.; 0.6dB Typ. | |
| Group Delay Variation | - | |
| Input VSWR | - | |
| Output VSWR | - | |
| Attenuation | 40dB Min.@5~1105MHz | |
| 33dB Min.@1105~1235 MHz | ||
| 22dB Min.@1365~1495 MHz | ||
| 33dB Min.@1495~2000MHz | ||
| 24dB Min.@2000~2500 MHz | ||
| Dimension | 3x3x1.25mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
