100 Mhz Crystal Oscillator Frequency Range 2.97-3.63V
100 MHz Crystal Oscillator Frequency Range 2.97-3.63V
Product Overview
| Attribute | Value |
|---|---|
| Product name | LT-CR series crystal oscillator |
| Application | Various electronic equipment and instruments in the field of national defense |
| Features | Low Power Consumption |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | ±65ppm |
| Operating Voltage | 2.97~3.63V |
| Color | Silver |
Product Description

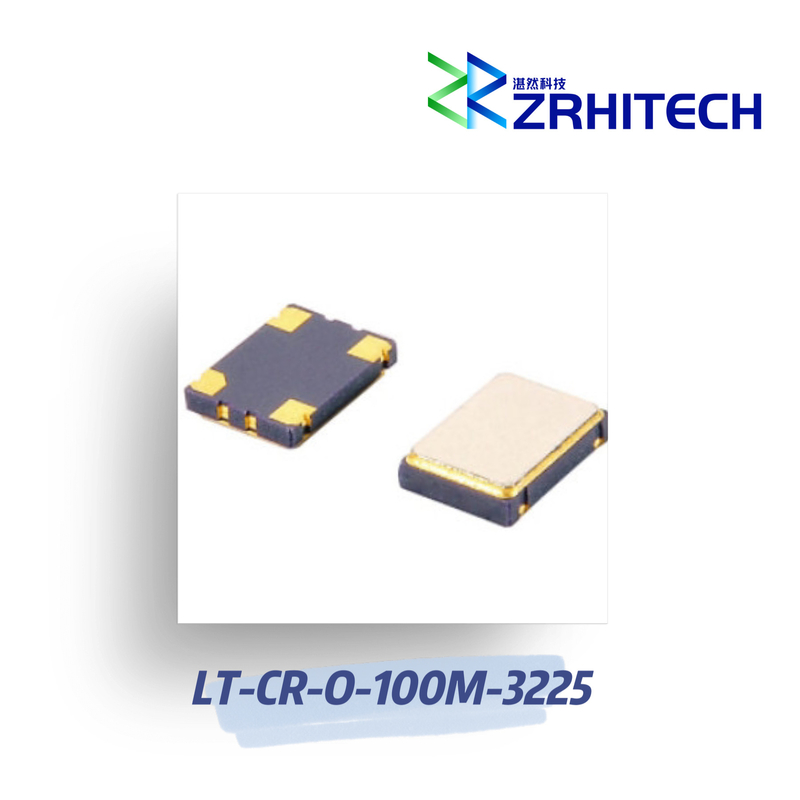

100MHz LT-CR series crystal oscillator
Key Features
- Aluminum housing
- Broadband Frequency
- -40℃~+85℃ operating temperature
- SMD package
- High precision
- Low phase noise
- CMOS Output Waveform
- CE, RoHS, REACH compliant
- 1 Year Warranty
The LT-CR-O-100M-3225 is the newest addition to ZR's line of Crystal Oscillator (XO) with a HCMOS output from 1 to 100 MHz. This XO requires a supply voltage of 2.97V to 3.63V and consumes 20 mA of current. They are available in a hermetically sealed surface-mount package and measure 3.2x2.5x1.2mm. These XOs are widely used in various electronic equipment and instruments in the field of national defense.
Specifications
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-O-100M-3225 | |
| Frequency Range | 100MHz | |
| Operating Voltage | 2.97~3.63V | |
| Frequency Stability vs. Temperature | ±65ppm | @-40~85℃ |
| Output Waveform | HCMOS | |
| Output Load | 15pF | |
| Duty Cycle(%) | 40~60 | |
| Rise/Fall Time(ns) | 6ns | 10%~90% | 0.1Vdd→0.9Vdd |
| Current Consumption(mA) | 20 | 3.3V non-loaded |
| Dimension | 3.2x2.5x1.2mm |
Note: for custom specs, please contact us directly.
Outline Drawing (Unit: mm)
