Highlight
20mhz crystal oscillator
,5v 20mhz crystal oscillator
,crystal oscillator 20mhz
-
FeaturesLow Power Consumption
-

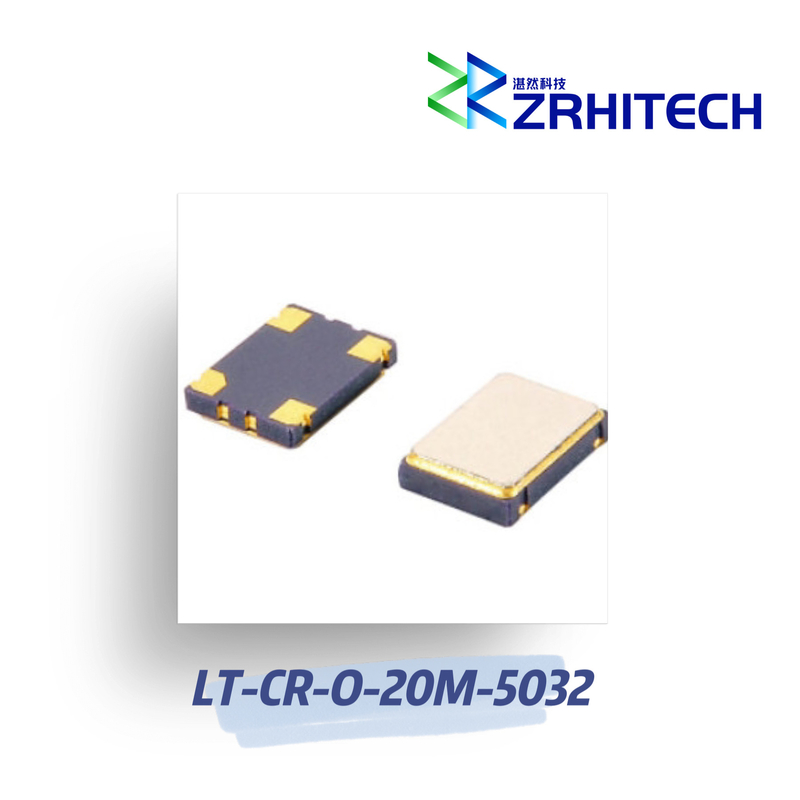

Product NameLT-CR Series Crystal Oscillator
-
ApplicationVarious Electronic Equipment And Instruments In The Field Of National Defense
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range±25ppm
-
Operating Voltage2.97~3.63V
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-O-20M-5032
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
5v 20mhz Crystal Oscillator 20MHz Frequency Range 25ppm
5V 20MHz Crystal Oscillator - 20MHz Frequency Range ±25ppm
Product Overview
The LT-CR series crystal oscillator features low power consumption and high precision, designed for various electronic equipment and instruments in defense applications.
Key Features
- Aluminum housing for durability
- Broadband frequency range
- Operating temperature: -40℃ to +85℃
- SMD package (5x3.2x1.3mm)
- High precision with ±25ppm stability
- Low phase noise
- CMOS output waveform
- Compliance: CE, RoHS, REACH
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-O-20M-5032 | |
| Frequency Range | 20MHz | |
| Operating Voltage | 2.97~3.63V | |
| Frequency Stability | ±25ppm | @-40~85℃ |
| Output Waveform | HCMOS | |
| Output Load | 15pF | |
| Duty Cycle | 40~60% | |
| Dimensions | 5x3.2x1.3mm |
Note: For custom specifications, please contact us directly.
Outline Drawing
