SAW Bandpass Filter Signal Conditioning
,460 mhz SAW Bandpass Filter
,460 mhz saw filter
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range450 To 470 MHz
-
ColorSilver
-
Low Insertion Loss2.8 To 3.2 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-460M-10M-3838
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

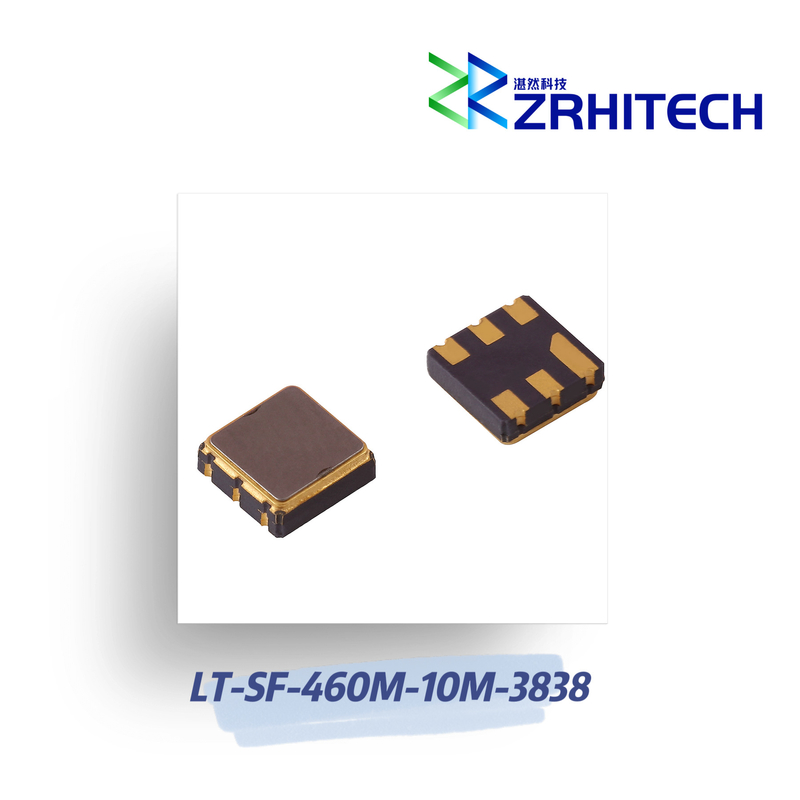

460MHz RF SAW Band Pass Filter
460MHz RF SAW Band Pass Filter
Product Overview
The LT-SF series RF SAW Filter is a high-performance band pass filter designed for wireless communication applications, featuring excellent rejection characteristics and low insertion loss.
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃ to +85℃)
- Surface mount package design
- Compact 3.8x3.8x1.5mm dimensions
- Cost-effective solution
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-460M-10M-3838 | |
| Center Frequency | 460MHz | |
| Insertion Loss | 3.2dB Max.; 2.8dB Typ. | 450.00-470.00MHz |
| Ripple in Bandwidth | 1.0dB Max.; 0.5dB Typ. | |
| Input VSWR | 2.0 Max.; 1.8 Typ. | |
| Output VSWR | 2.0 Max.; 1.8 Typ. | |
| Attenuation | 40dB Min.@DC-450.00MHz 40dB Min.@530.00-1000.00MHz 30dB Min.@1000.00-1500.00MHz 20dB Min.@1500.00-2000.00MHz |
|
| Dimensions | 3.8x3.8x1.5mm |
Note: Custom specifications available upon request. Please contact us directly for tailored solutions.
Product Diagram
Applications
This RF SAW filter is ideal for various wireless communication systems requiring precise frequency filtering within the 450-470MHz range.
