915 mhz saw filter
,915MHz rf saw filter
,rf saw filter SMD 3x3mm
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range910 To 920 MHz
-
ColorSilver
-
Low Insertion Loss2.5 To 3.5 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-915M-10M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

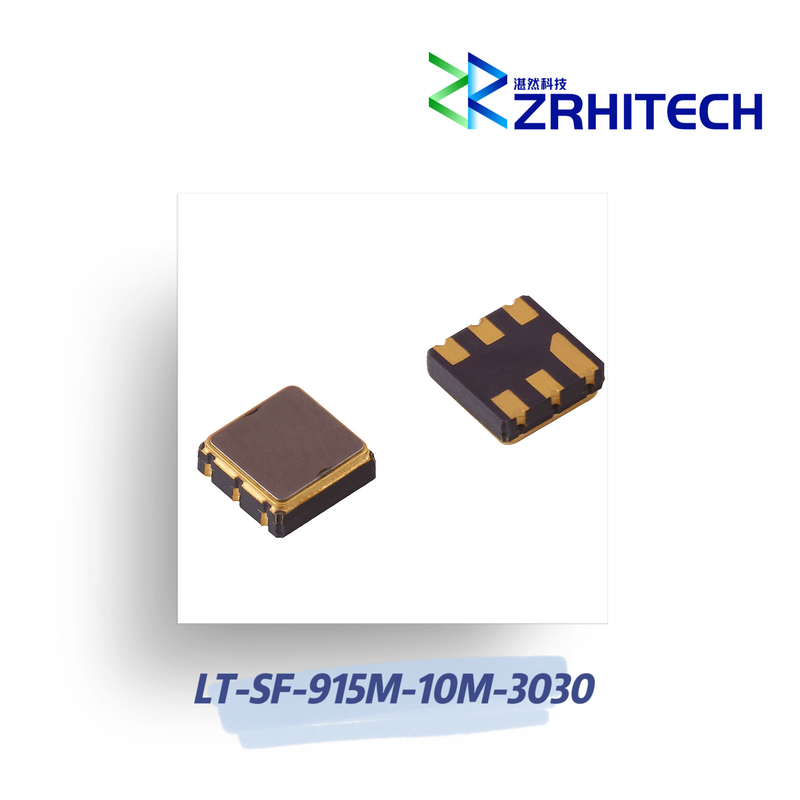

915MHz RF Saw Band Pass Filter
915MHz RF Saw Band Pass Filter
Product Overview
The LT-SF series RF SAW Filter is a high-performance band pass filter designed for wireless communication applications. Featuring an aluminum housing and excellent rejection characteristics, it operates reliably across a wide temperature range of -40℃ to +85℃.
Key Features
- Frequency range: 910 to 920 MHz
- Low insertion loss: 2.5 to 3.5 dB
- Aluminum housing for durability
- Customizable frequency options available
- Compact surface mount package (3x3x1.25mm)
- Cost-effective solution
- Compliant with CE, RoHS, and REACH standards
- 1-year warranty included
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-915M-10M-3030 | |
| Center Frequency | 915MHz | |
| Insertion Loss | 3.5dB Max.; 2.5dB Typ. | 910.00~920.00MHz |
| Ripple in Bandwidth | 1.7dB Max.; 0.8dB Typ. | |
| Input VSWR | 1.9 Max.; 1.4 Typ. | |
| Output VSWR | 1.9 Max.; 1.4 Typ. | |
| Attenuation | 42dB Min.@DC-873.00MHz 37dB Min.@873.00-894.00MHz 34dB Min.@934.00-937.00MHz 50dB Min.@937.00-1000.00MHz 47dB Min.@1000.00-1500.00MHz 32dB Min.@1500.00-2600.00MHz |
|
| Dimension | 3x3x1.25mm |
Note: Custom specifications available upon request. Please contact us directly for tailored solutions.
Product Diagram
Applications
This RF SAW filter is ideal for various wireless communication systems requiring precise frequency filtering within the 915MHz range. Its compact size and surface mount design make it suitable for space-constrained applications.
