SAW Filter 503.9MHz
,503.9MHz SAW Filter
,RF SAW Filter 503.9MHz
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range492.6 To 515.2 MHz
-
ColorSilver
-
Low Insertion Loss3.8 To 4.5 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-504M-22M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

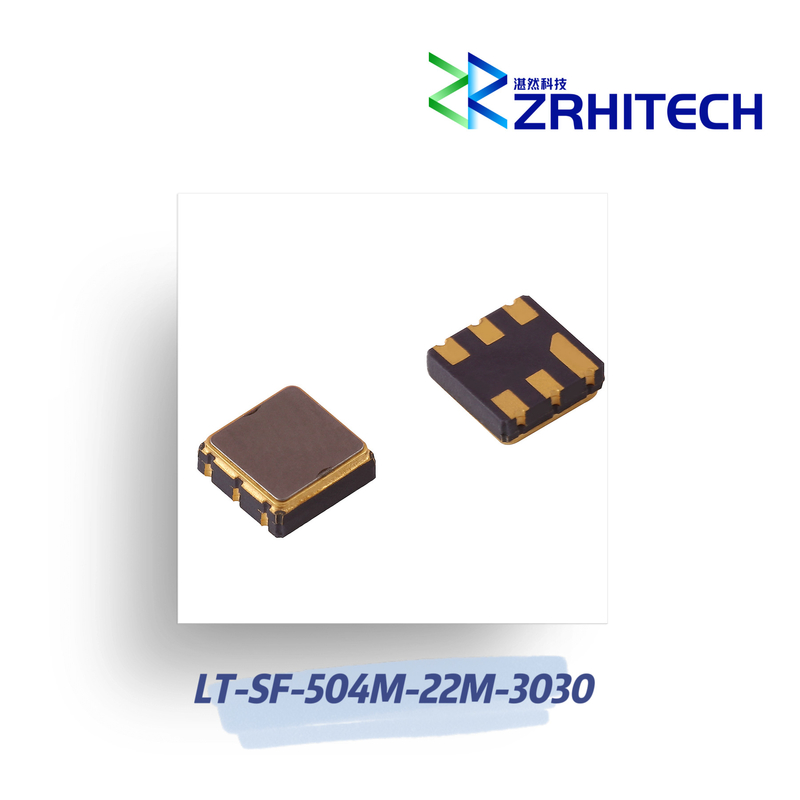

503.9MHz RF SAW Band Pass Filter
503.9MHz RF SAW Band Pass Filter
Product Overview
The LT-SF series RF SAW Filter is a high-performance band pass filter designed for wireless communication applications, featuring aluminum housing and excellent rejection characteristics.
Key Features
- Frequency range: 492.6 to 515.2 MHz
- Low insertion loss: 3.8 to 4.5 dB
- Operating temperature: -40℃ to +85℃
- Surface mount package (3x3x1.25mm)
- High rejection: 35 to 45 dB
- CE, RoHS, and REACH compliant
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-504M-22M-3030 | |
| Center Frequency | 503.9MHz | |
| Insertion Loss | 4.5dB Max.; 3.8dB Typ. | 492.60~515.20MHz |
| Ripple in Bandwidth | 1.0dB Max.; 0.6dB Typ. | |
| Group Delay Variation | 60ns Max.; 10ns Typ. | |
| Input VSWR | 2.0 Max.; 1.8 Typ. | |
| Output VSWR | 2.0 Max.; 1.8 Typ. | |
| Attenuation | 45dB Min.@DC-450.00MHz 40dB Min.@570.00-700.00 MHz 35dB Min.@700.00-1500.00 MHz |
|
| Dimensions | 3x3x1.25mm |
Note: Custom specifications available upon request. Please contact us for details.
