FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range767 To 777 MHz
-
ColorSilver
-
Low Insertion Loss2.5 To 3.5 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-772M-10M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

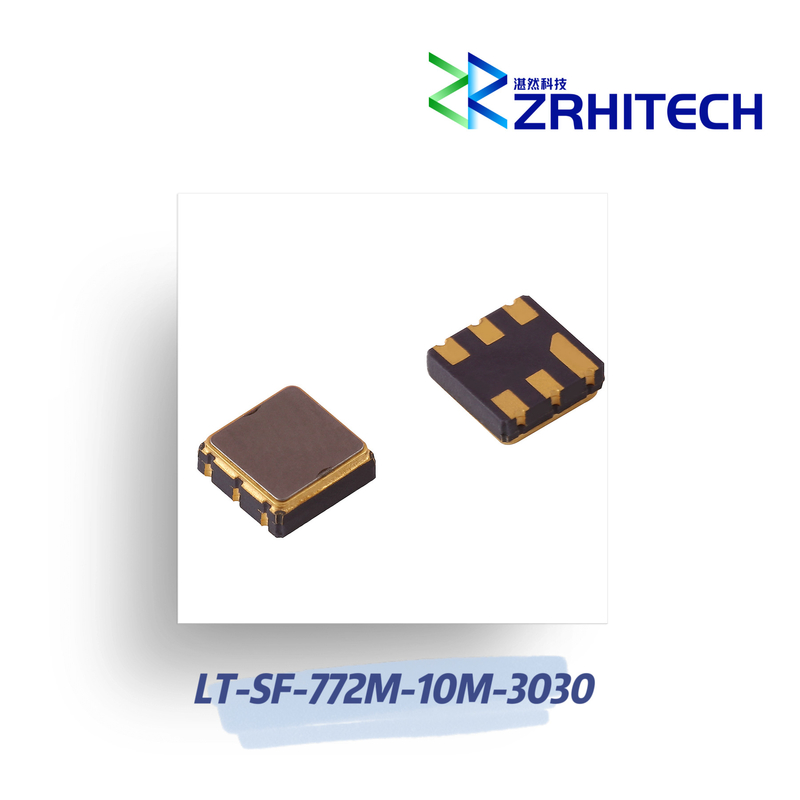

772MHz RF SAW Band Pass Filter
772MHz LT-SF series RF SAW Band Pass Filter
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Sourface Mount Package
· Small Size
· Low Cost
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-SF-772M-10M-3030 from ZR is a Band Pass Filter with Frequency 767 to 777MHz, Bandwidth 10 MHz, Center Frequency 772 MHz, Insertion Loss 2.5 to 3.5 dB, Rejection 30 to 40 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-772M-10M-3030 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SF-772M-10M-3030 | |
| Center Frequency | 772MHz | |
| Insertion Loss | - | |
| Insertion Loss(767.00~777.00 MHz) | 3.5dB Max.; 2.5dB Typ. | |
| Ripple in Bandwidth | 0.6dB Max.; 1.0dB Typ. | |
| Group Delay Variation | 50ns Max.;30ns Typ. | |
| Input VSWR | 2.0 Max.;1.6 Typ. | |
| Output VSWR | 2.0 Max.;1.6 Typ. | |
| Attenuation | 40dB Min.@DC~757.00MHz | |
| 40dB Min.@787.00~1000.00MHz | ||
| 35dB Min.@1000.00~1500.00MHz | ||
| 32dB Min.@1500.00~2000.00MHz | ||
| 30dB Min.@2000.00~2500.00MHz | ||
| Dimension | 3x3x1.25mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
