Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range868 To 870 MHz
-
ColorSilver
-
Low Insertion Loss0.5 To 1.0 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-869M-2M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

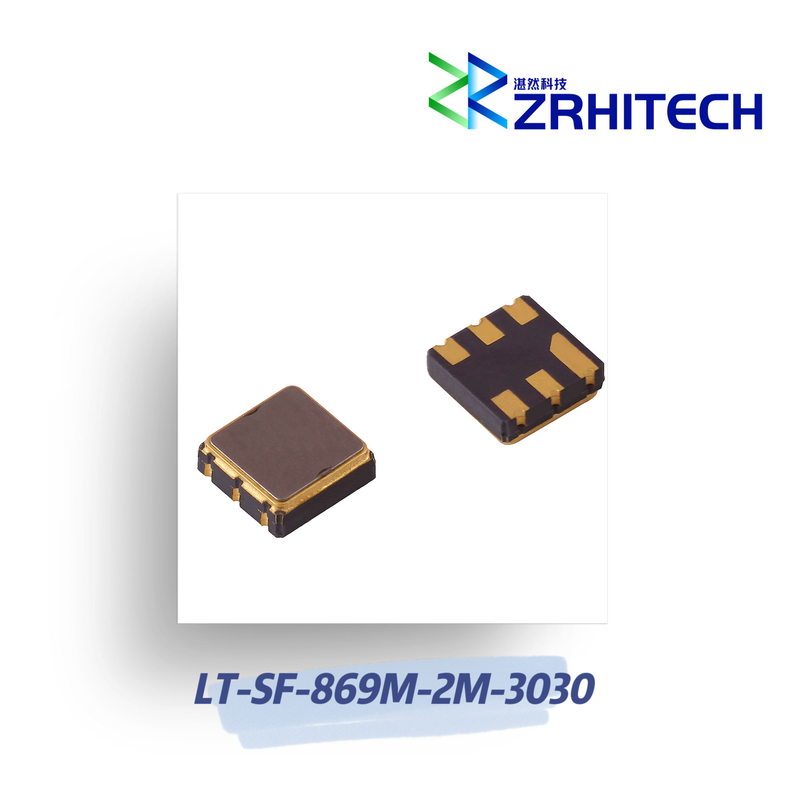

869MHz RF SAW Pass Band Filter
869MHz RF SAW Pass Band Filter
Product Overview
| Product Name | LT-SF series RF SAW Filter |
|---|---|
| Application | Wireless Communication |
| Features | High Rejection |
| Material | Aluminum |
| Temperature Range | -40°C to +85°C |
| Frequency Range | 868 to 870 MHz |
| Color | Silver |
| Insertion Loss | 0.5 to 1.0 dB |
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40°C to +85°C)
- Surface mount package design
- Compact 3x3x1.25mm dimensions
- Cost-effective solution
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-SF-869M-2M-3030 is a high-performance SAW band pass filter designed for wireless communication applications. Operating in the 868-870 MHz frequency range with a 2 MHz bandwidth, this filter features low insertion loss (0.5-1.0 dB) and excellent rejection characteristics (20-45 dB). Its surface mount design and compact size make it ideal for space-constrained applications.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-869M-2M-3030 | |
| Center Frequency | 869 MHz | |
| Insertion Loss | 1.0 dB Max.; 0.5 dB Typ. | 868.00-870.00 MHz |
| Ripple in Bandwidth | 1.0 dB Max.; 0.5 dB Typ. | |
| Input VSWR | 2.0 Max.; 1.6 Typ. | |
| Output VSWR | 2.0 Max.; 1.6 Typ. | |
| Attenuation | 45 dB Min. @ DC-3000.00 MHz 40 dB Min. @ 300.00-845.00 MHz 35 dB Min. @ 845.00-853.00 MHz 20 dB Min. @ 879.00-883.00 MHz 45 dB Min. @ 883.00-915.00 MHz 35 dB Min. @ 945.00-1200.00 MHz 25 dB Min. @ 1200.00-2000.00 MHz |
|
| Dimensions | 3 × 3 × 1.25 mm |
Note: Custom specifications available upon request.
