SMD3.0x3.0mm SAW Filter
,SAW Filter 2185MHz
,2185MHz SAW Filter
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range2170 To 2200 MHz
-
ColorSilver
-
Low Insertion Loss2.6 To 3.5 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-2185M-30M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

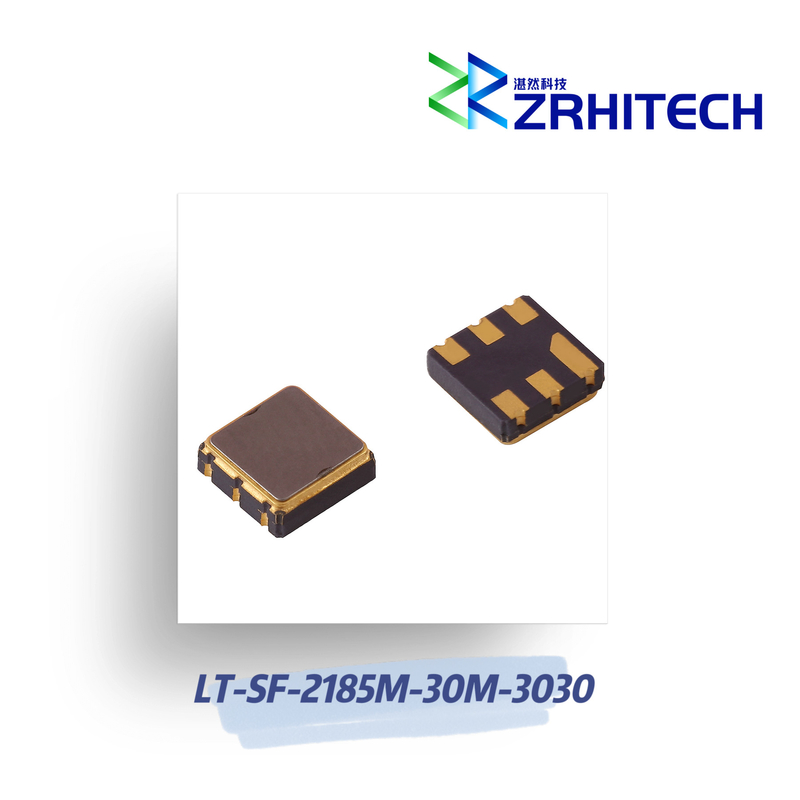

2185MHz RF SAW Pass Band Filter
2185MHz LT-SF series RF SAW Band Pass Filter
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Sourface Mount Package
· Small Size
· Low Cost
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-SF-2185M-30M-3030 from ZR is a Band Pass Filter with Frequency 2170 to 2200 MHz, Bandwidth 50 MHz, Center Frequency 2185 MHz,Insertion Loss 2.6 to 3.5 dB, Rejection 30 to 35 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-2185M-30M-3030 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SF-2185M-30M-3030 | |
| Center Frequency | 2185MHz | |
| Insertion Loss | - | |
| Insertion Loss(2170.00~2200.00 MHz) | 3.5dB Max.; 2.6dB Typ. | |
| Ripple in Bandwidth | 1.0dB Max.; 0.6dB Typ. | |
| Group Delay Variation | 30ns Max.;10ns Typ. | |
| Input VSWR | 2.0 Max.;1.5 Typ. | |
| Output VSWR | 2.0 Max.;1.5 Typ. | |
| Attenuation | 35dB Min.@DC-2000.00MHz | |
| 35dB Min.@2000.00-2110.00MHz | ||
| 38dB Min.@3000.00-3100.00MHz | ||
| 30dB Min.@3900.00-4000.00MHz | ||
| Dimension | 3x3x1.25mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
Our products are sold all over the world, you can rest assured.
