1795MHz SAW Filter
,SAW Filter 1795 MHz
,RF SAW Filters 2.2dB
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range1785 To 1805 MHz
-
ColorSilver
-
Low Insertion Loss2.4 To 3.0 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-1795M-20M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
1795MHz RF SAW Band Pass Filter
1795MHz RF SAW Band Pass Filter
Product Overview
| Attribute | Value |
|---|---|
| Product name | LT-SF series RF SAW Filter |
| Application | Wireless Communication |
| Features | High Rejection |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 1785 to 1805 MHz |
| Color | Silver |
| Low Insertion Loss | 2.4 to 3.0 dB |
Product Description

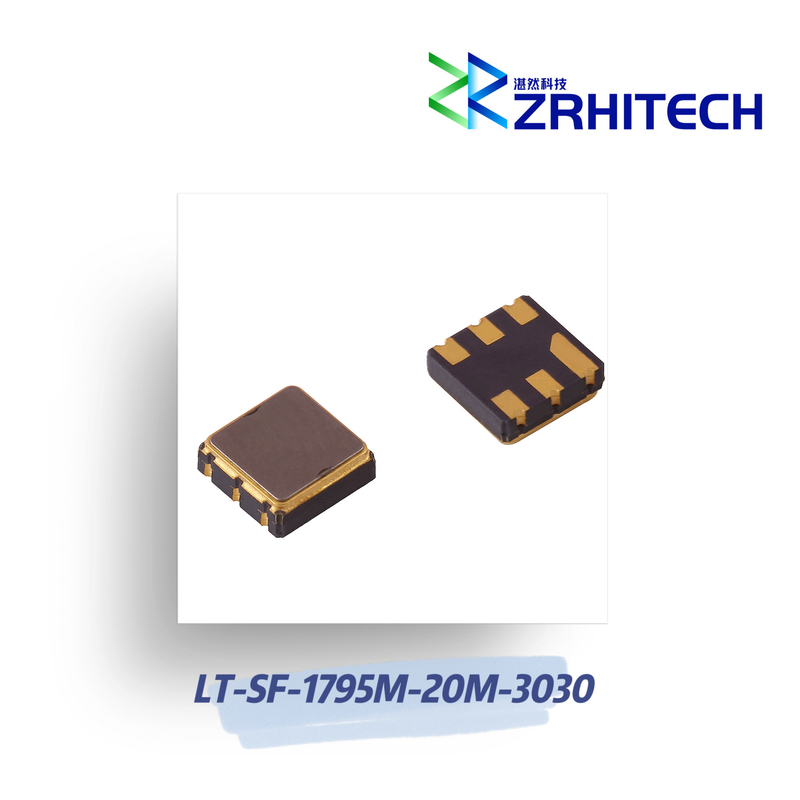

1795MHz LT-SF series RF SAW Band Pass Filter
Key Features
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Surface Mount Package
- Compact Size (3x3x1.25mm)
- Cost-Effective Solution
- CE, RoHS, REACH compliant
- 1 Year Warranty
The LT-SF-1795M-20M-3030 is a Band Pass Filter with frequency range 1785 to 1805 MHz, bandwidth 20 MHz, and center frequency 1795 MHz. Featuring low insertion loss (2.4 to 3.0 dB) and high rejection (35 to 40 dB), this surface mount RF SAW filter is ideal for various wireless communication applications.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-1795M-20M-3030 | |
| Center Frequency | 1795MHz | |
| Insertion Loss | 3.0dB Max.; 2.4dB Typ. | 1785.00~1805.00 MHz |
| Ripple in Bandwidth | 1.0dB Max.; 0.8dB Typ. | |
| Group Delay Variation | 30ns Max.; 10ns Typ. | |
| Input VSWR | 2.0 Max.; 1.5 Typ. | |
| Attenuation | 40dB Min.@DC~1600MHz 35dB Min.@1600.00~1735.00MHz 45dB Min.@1850.00~1900.00MHz 40dB Min.@1900.00~2700.00MHz 40dB Min.@3400.00~4000.00MHz |
|
| Dimension | 3x3x1.25mm |
Note: Custom specifications available upon request.
