FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range1980 To 2020 MHz
-
ColorSilver
-
Low Insertion Loss2.4 To 4 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-200M000-40M-3025
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

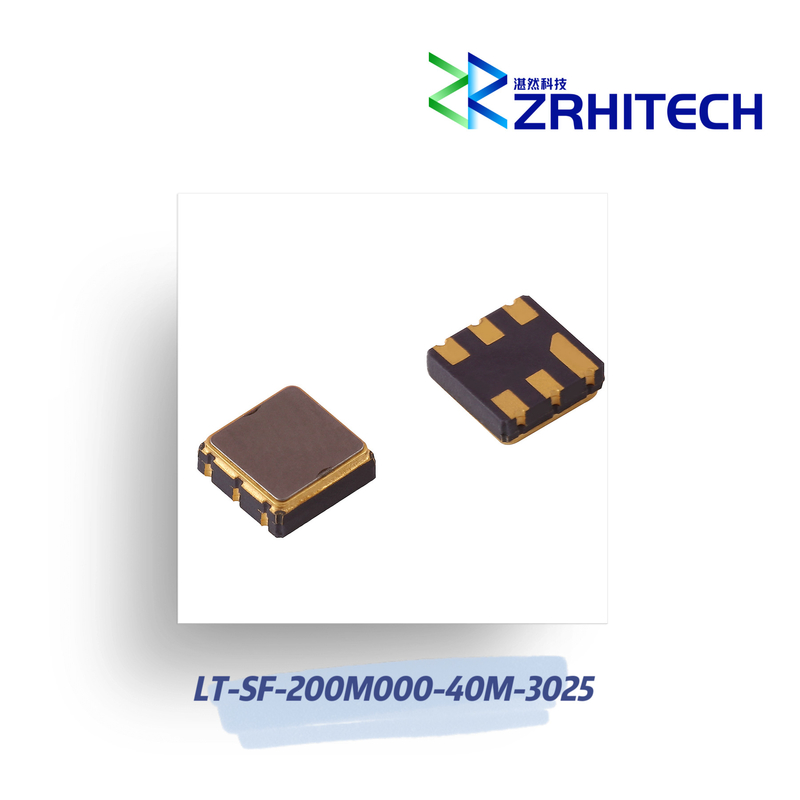

200MHz RF SAW Band Pass Filter
200MHz LT-SF series RF SAW Band Pass Filter
Quick Detail:
· Aluminum housing
· Customizable Frequency
· -40℃~+85℃ operating temperature
· Surface Mount
· Small Size
· Low cost
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-SF-200M000-40M-3025 from ZR is a Band Pass Filter with Frequency 1980 to 2020 MHz, Bandwidth 40 MHz, Center Frequency 2020 MHz, Insertion Loss 2.4 to 4 dB, Rejection 30 to 32 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-200M000-40M-3025 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SF-200M000-40M-3025 | |
| Center Frequency | 200MHz | |
| Insertion Loss | ||
| Insertion Loss(1980.00-2020.00MHz) | 4dB Max.; 2.4dB Typ. | |
| Ripple in Bandwidth | 2.0dB Max.;0.7dB Typ. | |
| Group Delay Variation | ||
| Input VSWR | 2.5:1 Max.;1.7:1 Typ. | |
| Output VSWR | ||
| Attenuation | 32dB Min.@500-1780MHz | |
| 32dB Min.@1780-1920MHz | ||
| 32dB Min.@300-1120MHz | ||
| 32dB Min.@2100-2180MHz | ||
| 30dB Min.@2180-4000MHz | ||
| Dimension | 3x2.5x1.4mm | |
| Note: for custom specs, please contact us directly. | ||
