Highlight
wifi saw filter
,saw filter rf
,saw filter ic
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range2130 To 2170 MHz
-
ColorSilver
-
Low Insertion Loss0.8 To 1.0 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-2150M-40M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

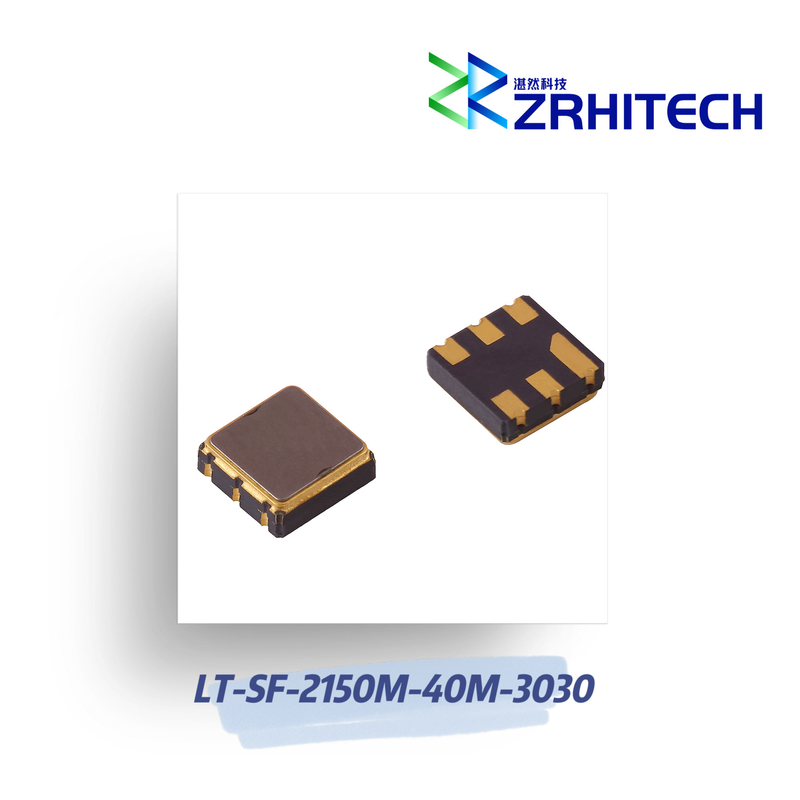

2150MHz RF Saw Band Pass Filter
2150MHz RF Saw Band Pass Filter
Product Overview
The LT-SF series RF SAW Filter is a high-performance band pass filter designed for wireless communication applications, featuring aluminum housing and excellent rejection characteristics.
Key Features
- Frequency Range: 2130 to 2170 MHz
- Low Insertion Loss: 0.8 to 1.0 dB
- Operating Temperature: -40℃ to +85℃
- Compact Size: 3x3x1.25mm surface mount package
- Compliance: CE, RoHS, REACH certified
- Warranty: 1 year
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-2150M-40M-3030 | |
| Center Frequency | 2150MHz | |
| Insertion Loss | 3.5dB Max.; 2.8dB Typ. | |
| Ripple in Bandwidth | 1.0dB Max.; 0.8dB Typ. | |
| Group Delay Variation | 30ns Max.; 10ns Typ. | |
| Input/Output VSWR | 2.0:1 Max.; 1.6:1 Typ. | |
| Attenuation | 35-45dB Min. across various frequency ranges | See detailed specifications |
Product Dimensions
Note: Custom specifications are available upon request. Please contact us for tailored solutions.
