1960MHz SAW Filter
,RF Rx Saw Filter
,saw filter band pass
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range1940 To 1980 MHz
-
ColorSilver
-
Low Insertion Loss2.2 To 3.0 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-

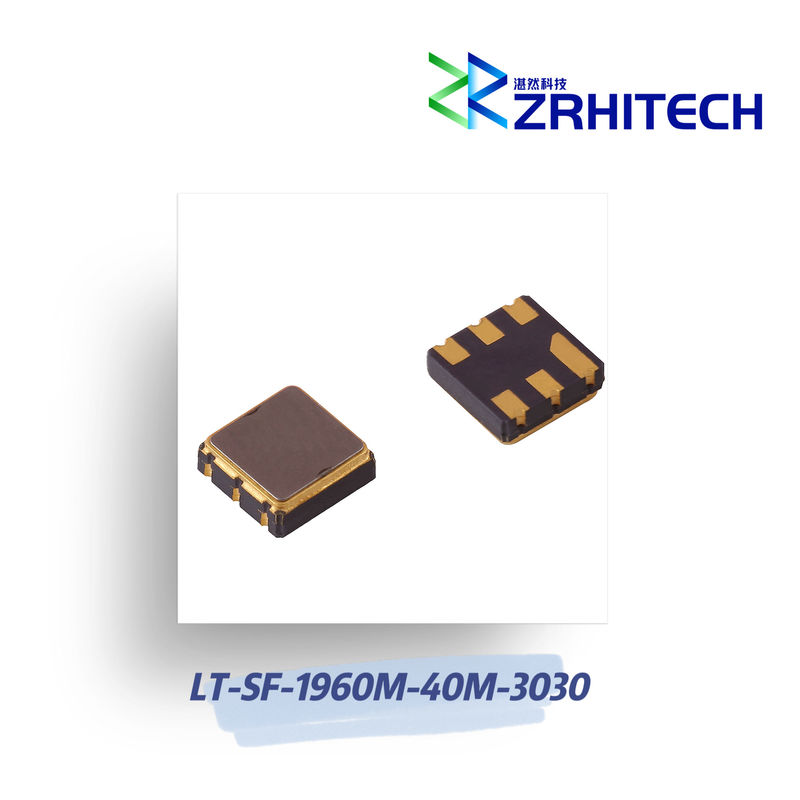

Model NumberLT-SF-1960M-40M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
1960MHz RF SAW Band Pass Filter
1960MHz RF SAW Band Pass Filter - LT-SF Series
Product Overview
The LT-SF-1960M-40M-3030 is a high-performance RF SAW Band Pass Filter designed for wireless communication applications. Featuring aluminum housing and surface mount packaging, this filter offers excellent rejection characteristics with low insertion loss.
Key Features
- Frequency range: 1940 to 1980 MHz
- Compact dimensions: 3×3×1.25mm
- Low insertion loss: 2.2 to 3.0 dB
- Wide operating temperature: -40℃ to +85℃
- Surface mount package for easy integration
- High rejection: 25 to 40 dB
- Compliance: CE, RoHS, REACH
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-1960M-40M-3030 | |
| Center Frequency | 1960MHz | |
| Insertion Loss | 2dB Max.; 1.5dB Typ. | |
| Ripple in Bandwidth | 1.0dB Max.; 0.8dB Typ. | |
| Group Delay Variation | 30ns Max.; 10ns Typ. | |
| Input/Output VSWR | 2.0:1 Max. | |
| Attenuation | 35dB Min.@DC-850MHz 30dB Min.@850-915MHz 30dB Min.@915-1880MHz 30dB Min.@2010MHz 40dB Min.@2130-2170MHz 40dB Min.@2170-2400MHz 25dB Min.@2500-3600MHz |
|
| Dimensions | 3×3×1.25mm |
Note: Custom specifications available upon request.
