FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range1735 To 1765 MHz
-
ColorSilver
-
Low Insertion Loss1.6 To 3.0 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-1750M-30M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
1750MHz RF SAW Band Pass Filter

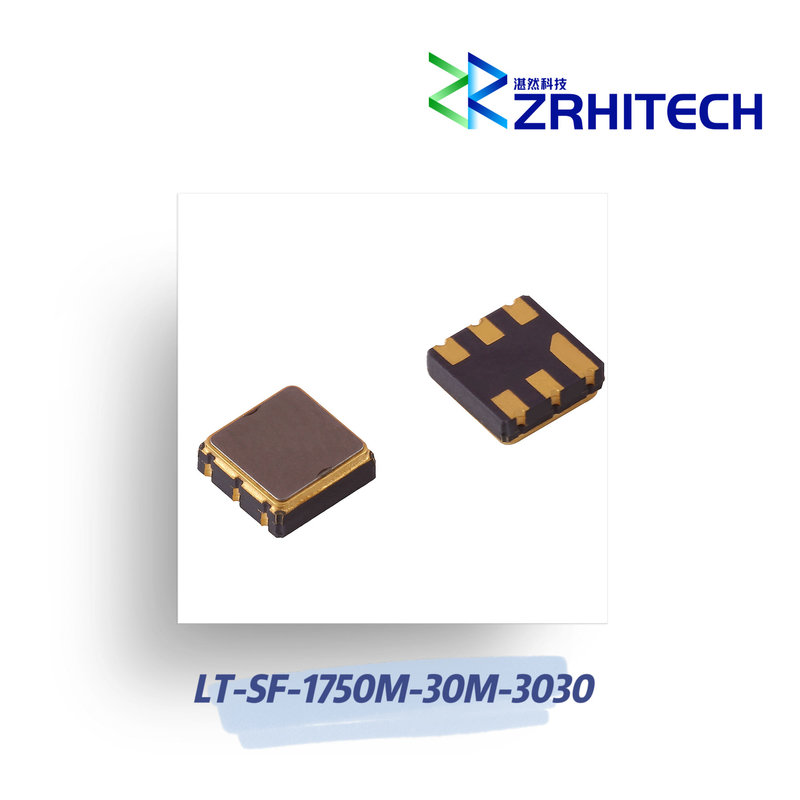

1750MHz LT-SF series RF SAW Band Pass Filter
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Sourface Mount Package
· Small Size
· Low Cost
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-SF-1750M-30M-3030 from ZR is a Band Pass Filter with Frequency 1735 to 1765 MHz,Bandwidth 30 MHz, Center Frequency 1750 MHz, Insertion Loss 1.6 to 3 dB, Rejection 30 to 40 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication. More details for LT-SF-1750M-30M-3030 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SF-1750M-30M-3030 | |
| Center Frequency | 1750MHz | |
| Insertion Loss | 2.0dB Max.; 1.2dB Typ. | |
| Insertion Loss(1735.00~1765.00MHz) | 3.0dB Max.; 1.6dB Typ. | |
| Ripple in Bandwidth | 1.0dB Max.; 0.6dB Typ. | |
| Group Delay Variation | 30ns Max.; 10ns Typ. | |
| Input VSWR | 2.2:1 Max.; 1.8:1 Typ. | |
| Output VSWR | 2.2:1 Max.; 1.8:1 Typ. | |
| Attenuation | 30dB Min.@DC-1600MHz | |
| 40dB Min.@1850-2600MHz | ||
| 30dB Min.@2600-3000MHz | ||
| Dimension | 3x3x1.25mm | |
| Note: for custom specs, please contact us directly. | ||
