Highlight
881.5MHz SAW Filter
,SAW Filter SF1183E
,SMD SAW Filter
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range869 To 894 MHz
-
ColorSilver
-
Low Insertion Loss2.3 To 3.5 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-881M000-25M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

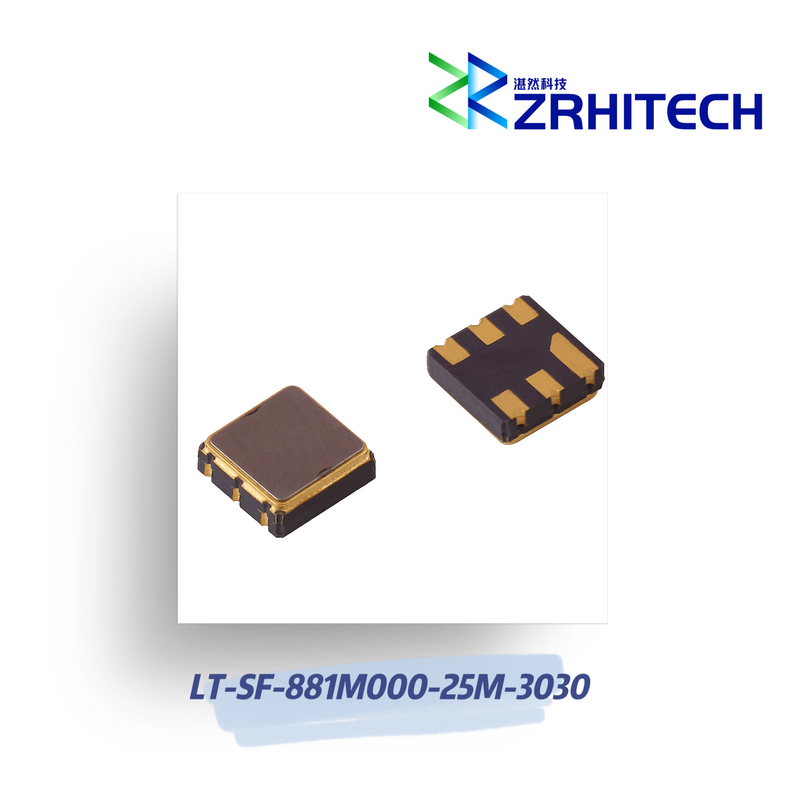

881.5MHz RF SAW Band Pass Filter
881.5MHz RF SAW Band Pass Filter
Product Overview
The LT-SF series RF SAW Filter is a high-performance band pass filter designed for wireless communication applications, featuring aluminum housing and excellent rejection characteristics.
Key Features
- Frequency range: 869 to 894 MHz
- Low insertion loss: 2.3 to 3.5 dB
- Operating temperature: -40℃ to +85℃
- Compact surface mount package (3x3x1.25mm)
- Aluminum housing for durability
- Customizable frequency options available
- Compliance: CE, RoHS, REACH
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-881M000-25M-3030 | |
| Center Frequency | 881.5MHz | |
| Insertion Loss | 3.5dB Max.; 2.3dB Typ. | 869.00-894.00MHz |
| Ripple in Bandwidth | 1.5dB Max.; 0.8dB Typ. | |
| Input VSWR | 2.0:1 Max.;1.8:1 Typ. | |
| Output VSWR | 2.0:1 Max.;1.8:1 Typ. | |
| Attenuation | 40dB Min.@DC-800MHz 10dB Min.@859MHz 35dB Min.@920-1500MHz 30dB Min.@1500-2500MHz |
|
| Dimensions | 3x3x1.25mm |
Note: Custom specifications available upon request. Please contact us for details.
Product Diagram
Applications
This RF SAW filter is ideal for various wireless communication systems requiring precise frequency filtering with low insertion loss and high rejection characteristics.
