836.5 MHz SAW Filter
,SAW Filter SF1182B
,SMD SAW Filter
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range824 To 849 MHz
-
ColorSilver
-
Low Insertion Loss2.2 To 3.5 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-836M000-25M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
836.5MHz RF SAW Band Pass Filter
836.5MHz LT-SF series RF SAW Band Pass Filter
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Sourface Mount Package
· Small Size
· Low Cost
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:

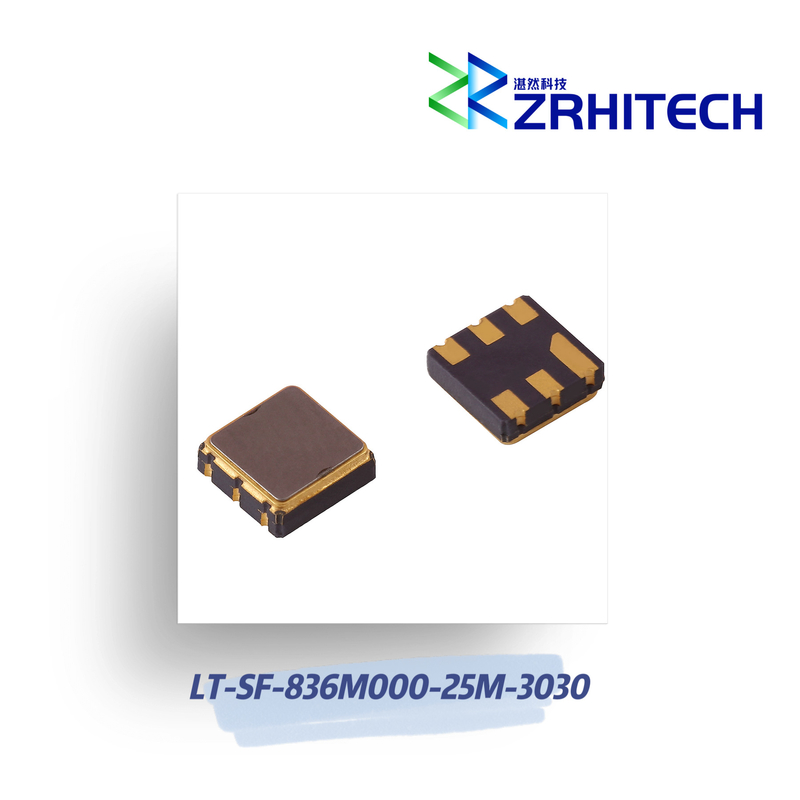

The LT-SF-836M000-25M-3030 from ZR is a Band Pass Filter with Frequency 824 to 849 MHz, Bandwidth 25 MHz, Center Frequency 836.5 MHz, Insertion Loss 2.2 to 3.5 dB, Rejection 18 to 40 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-836M000-25M-3030 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SF-836M000-25M-3030 | |
| Center Frequency | 836.5MHz | |
| Insertion Loss | - | |
| Insertion Loss(824.00-849.00MHz) | 3.5dB Max.; 2.2dB Typ. | |
| Ripple in Bandwidth | 1.5dB Max.;0.8dB Typ. | |
| Group Delay Variation | ||
| Input VSWR | 2.0:1 Max.;1.8:1 Typ. | |
| Output VSWR | - | |
| Attenuation | 38dB Min.@DC-800MHz | |
| 18dB Min.@859MHz | ||
| 40dB Min.@900-1500MHz | ||
| 40dB Min.@1500-2000MHz | ||
| Dimension | 3x3x1.25mm | |
| Note: for custom specs, please contact us directly. | ||
