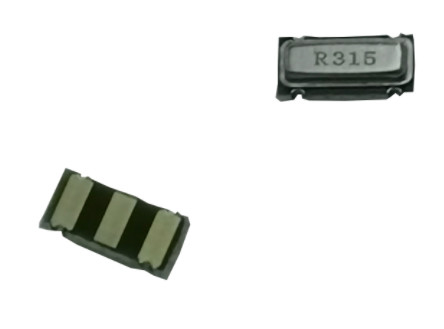

Surface Acoustic Wave Saw Resonators 379.925MHz To 380.075MHz
LT-SR-380-3070 LT-SR Series SAW Resonators with Frequency Range 379.925MHz to 380.075MHz
379.925MHz to 380.075MHz LT-SR Series SAW Resonator
Quick Detail:
· Aluminum Housing
· -40℃~+85℃ Operating Temperature
· SMD Package
· DC Voltage: 30V
· RF Power Dissipation: 10dBm
· CE, RoHS, REACH Compliant
· 1 Year Warranty
Description:
The LT-SR-380-3070 from ZR is a SAW Resonator with Frequency 379.925MHz to 380.075 MHz, Centre Frequency 380 MHz, Insertion Loss 1.5 to 2.2 dB, Quality Factor Loaded 12000. Tags: Surface Mount, SAW Resonator. More details for LT-SR-380-3070 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Part Number : LT-SR-380-3070 | |||||
| Item | Unites | Min. | Typ. | Max. | |
| Center Frequency | MHz | 379.925 | 380.000 | 380.075 | |
| Insertion Loss | dB | 1.5 | 2.2 | ||
| Quality Factor Unload Q | 12000 | ||||
| 50Ω Loaded Q | 1800 | ||||
Temperature Stability | Turnover Temperature | ℃ | 10 | 25 | 40 |
| Freq.temp.Coefficient | ppm/℃2 | 0.037 | |||
| Frequency Aging | ppm/yr | ≤±10 | |||
| DC. Insulation Resistance | MΩ | 1.0 | |||
| RF Equivalent RLC Model | Motional Resistance R1 | Ω | - | ||
| Motional Inductance L1 | μ H | - | |||
| Motional Capacitance C1 | fF | - | |||
| Transducer Static Capacitance | pF | - | |||
| Note: for custom specs, please contact us directly. | |||||
Outline Drawing (Unit: mm):
Typical Frequency Response
