Surface Acoustic Wave Saw Resonators 433.870MHz To 433.970MH

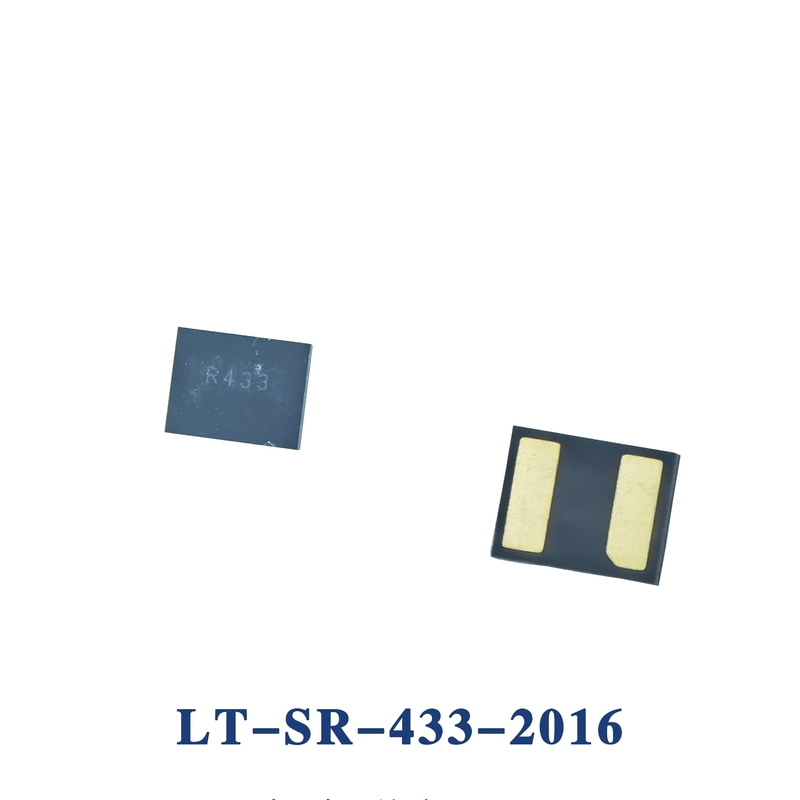

LT-SR-433-2016(±50K) LT-SR Series SAW Resonators with Frequency Range 433.870MHz to 433.970MH
433.870MHz to 433.970MHz LT-SR Series SAW Resonator
Quick Detail:
· Aluminum Housing
· -40℃~+85℃ Operating Temperature
· SMD Package
· DC Voltage: ±30V
· RF Power Dissipation: 10dBm
· CE, RoHS, REACH Compliant
· 1 Year Warranty
Description:
The LT-SR-433-2016(±50K) from ZR is a SAW Resonator with Frequency 433.870MHz to 433.970MHz, Centre Frequency 433.920MHz, Insertion Loss 1.3 to 2.1 dB, Quality Factor Loaded 12000. Tags: Surface Mount, SAW Resonator. More details for LT-SR-433-2016(±50K) can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Part Number : LT-SR-433-2016(±50K) | |||||
| Item | Unites | Min. | Typ. | Max. | |
| Center Frequency | MHz | 433.870 | 433.920 | 433.970 | |
| Insertion Loss | dB | 1.3 | 2.1 | ||
| Quality Factor Unload Q | 12000 | ||||
| 50Ω Loaded Q | 1500 | ||||
|
Temperature Stability |
Turnover Temperature | ℃ | 10 | 25 | 40 |
| Freq.temp.Coefficient | ppm/℃2 | 0.032 | |||
| Frequency Aging | ppm/yr | ≤±10 | |||
| DC. Insulation Resistance | MΩ | 1.0 | |||
| RF Equivalent RLC Model | Motional Resistance R1 | Ω | 12.196 | ||
| Motional Inductance L1 | μ H | 183.82 | |||
| Motional Capacitance C1 | fF | 0.733 | |||
| Transducer Static Capacitance | pF | 2.23 | |||
| Note: for custom specs, please contact us directly. | |||||
Outline Drawing (Unit: mm):
Typical Frequency Response
