Surface Acoustic Wave Saw Resonators 349.925MHz To 336.075MHz

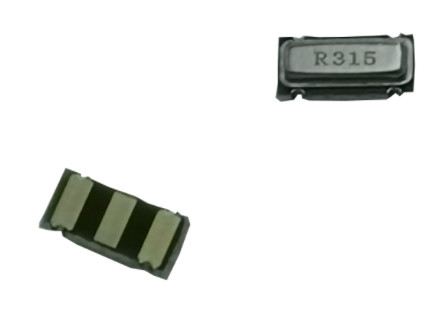

LT-SR-350-3070 SAW Resonator - 349.925MHz to 336.075MHz
Key Features
- Aluminum housing for durability
- Wide operating temperature range: -40℃ to +85℃
- SMD package for easy integration
- 30V DC voltage rating
- 0dBm RF power dissipation
- Compliant with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-SR-350-3070 SAW resonator offers precise frequency operation from 349.925MHz to 350.075MHz with a center frequency of 350MHz. This surface mount device features low insertion loss (1.5 to 2.0 dB) and high quality factor (Q loaded: 12000), making it ideal for demanding RF applications.
Technical Specifications
| Parameter | Units | Min | Typ | Max |
|---|---|---|---|---|
| Center Frequency | MHz | 349.925 | 350.000 | 350.075 |
| Insertion Loss | dB | 1.5 | 2.0 | |
| Quality Factor (Unloaded Q) | 12000 | |||
| 50Ω Loaded Q | 1500 | |||
| Temperature Stability | ℃ | 10 | 25 | 40 |
| Frequency Temperature Coefficient | ppm/℃² | 0.037 | ||
| Frequency Aging | ppm/yr | ≤±10 | ||
| DC Insulation Resistance | MΩ | 1.0 |
RF Equivalent RLC Model
| Parameter | Units | Min | Typ | Max |
|---|---|---|---|---|
| Motional Resistance R1 | Ω | 21 | 26 | |
| Motional Inductance L1 | μH | 106.75 | ||
| Motional Capacitance C1 | fF | 1.89 | ||
| Transducer Static Capacitance | pF | 2.1 |
Note: Contact us directly for custom specifications.
