Surface Acoustic Wave Saw Resonators 335.925MHz To 336.075MHz
Surface Acoustic Wave SAW Resonators 335.925MHz To 336.075MHz

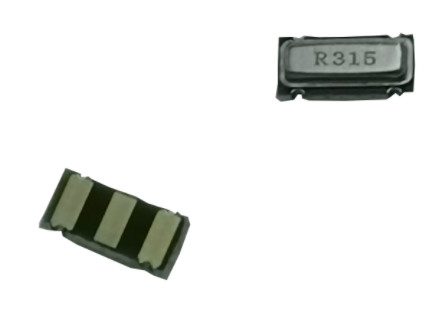

LT-SR-336-3070 SAW Resonator
The LT-SR-336-3070 from ZR is a high-performance SAW Resonator operating at 335.925MHz to 336.075MHz with a center frequency of 336MHz. This surface mount device features excellent insertion loss characteristics and is designed for reliable operation across industrial temperature ranges.
Key Features
- Frequency Range: 335.925MHz to 336.075MHz
- Aluminum housing for durability
- Operating Temperature: -40℃ to +85℃
- SMD package for easy integration
- DC Voltage: 30V
- RF Power Dissipation: 0dBm
- Compliance: CE, RoHS, REACH
- 1 Year Warranty
Technical Specifications
| Parameter | Units | Min | Typ | Max |
|---|---|---|---|---|
| Center Frequency | MHz | 335.925 | 336.000 | 336.075 |
| Insertion Loss | dB | 1.5 | 2.0 | |
| Quality Factor (Unloaded Q) | 12000 | |||
| 50Ω Loaded Q | 1600 | |||
| Temperature Stability | ℃ | 10 | 25 | 40 |
| Frequency Temperature Coefficient | ppm/℃² | 0.032 | ||
| Frequency Aging | ppm/yr | ≤±10 | ||
| DC Insulation Resistance | MΩ | 1.0 |
Note: For custom specifications, please contact us directly.
