Surface Acoustic Wave Saw Resonators 314.925MHz To 315.075MHz

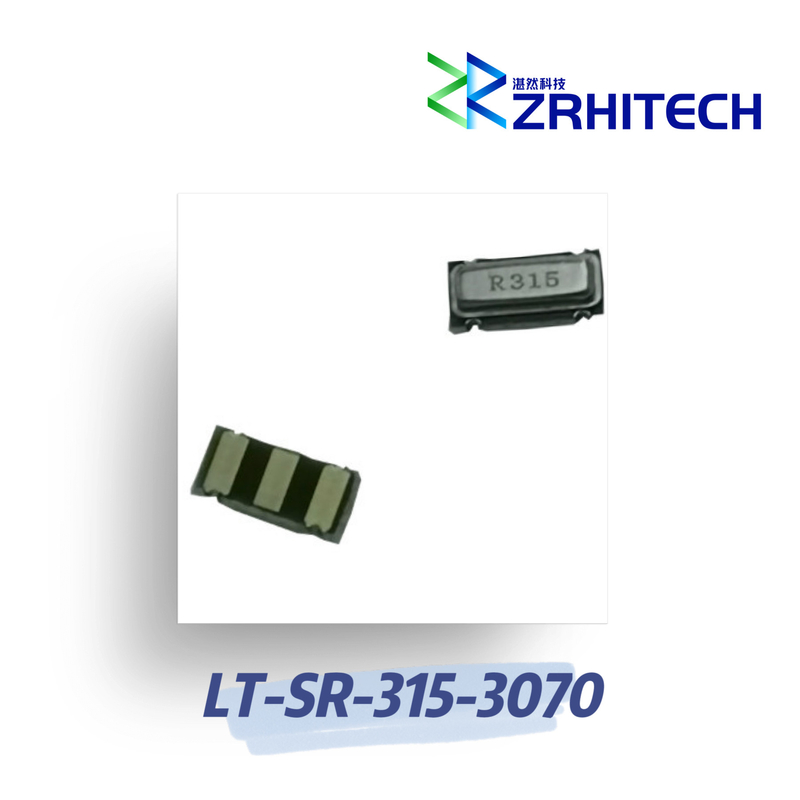

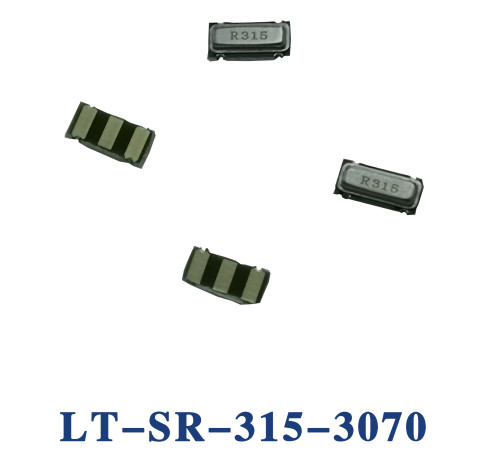

LT-SR-315-3070 SAW Resonator
Surface Acoustic Wave Resonator 314.925MHz to 315.075MHz
Key Features
- Aluminum housing for durability
- Operating temperature range: -20℃ to +70℃
- SMD package for surface mounting
- DC voltage: 30V
- RF power dissipation: 10dBm
- Compliance: CE, RoHS, REACH
- 1 year warranty
Product Description
The LT-SR-315-3070 SAW Resonator features a frequency range of 314.925MHz to 315.075MHz with a center frequency of 315MHz. This surface mount component offers excellent performance with insertion loss of 1.4 to 1.8 dB and a loaded quality factor of 12000.
Technical Specifications
| Parameter | Units | Min | Typ | Max |
|---|---|---|---|---|
| Center Frequency | MHz | 314.925 | 315.000 | 315.075 |
| Insertion Loss | dB | 1.4 | 1.8 | |
| Quality Factor (Unloaded Q) | 12000 | |||
| 50Ω Loaded Q | 1000 | |||
| Temperature Stability | ℃ | 2 | 20 | 35 |
| Frequency Aging | ppm/yr | ≤±10 | ||
| DC Insulation Resistance | MΩ | 1.0 |
Note: For custom specifications, please contact us directly.
Mechanical Dimensions
Frequency Response
