We have covered directional couplers before. We walked through their basic theories, key performance specs, and the design workflow of branch-line directional couplers, the most widely used type. Today, we move on to another mainstream variant: parallel-coupled line directional couplers. If you haven’t read our earlier articles yet, feel free to review them to follow along easily.

Table of Contents

Introduction to Parallel Coupled Line Directional Couplers

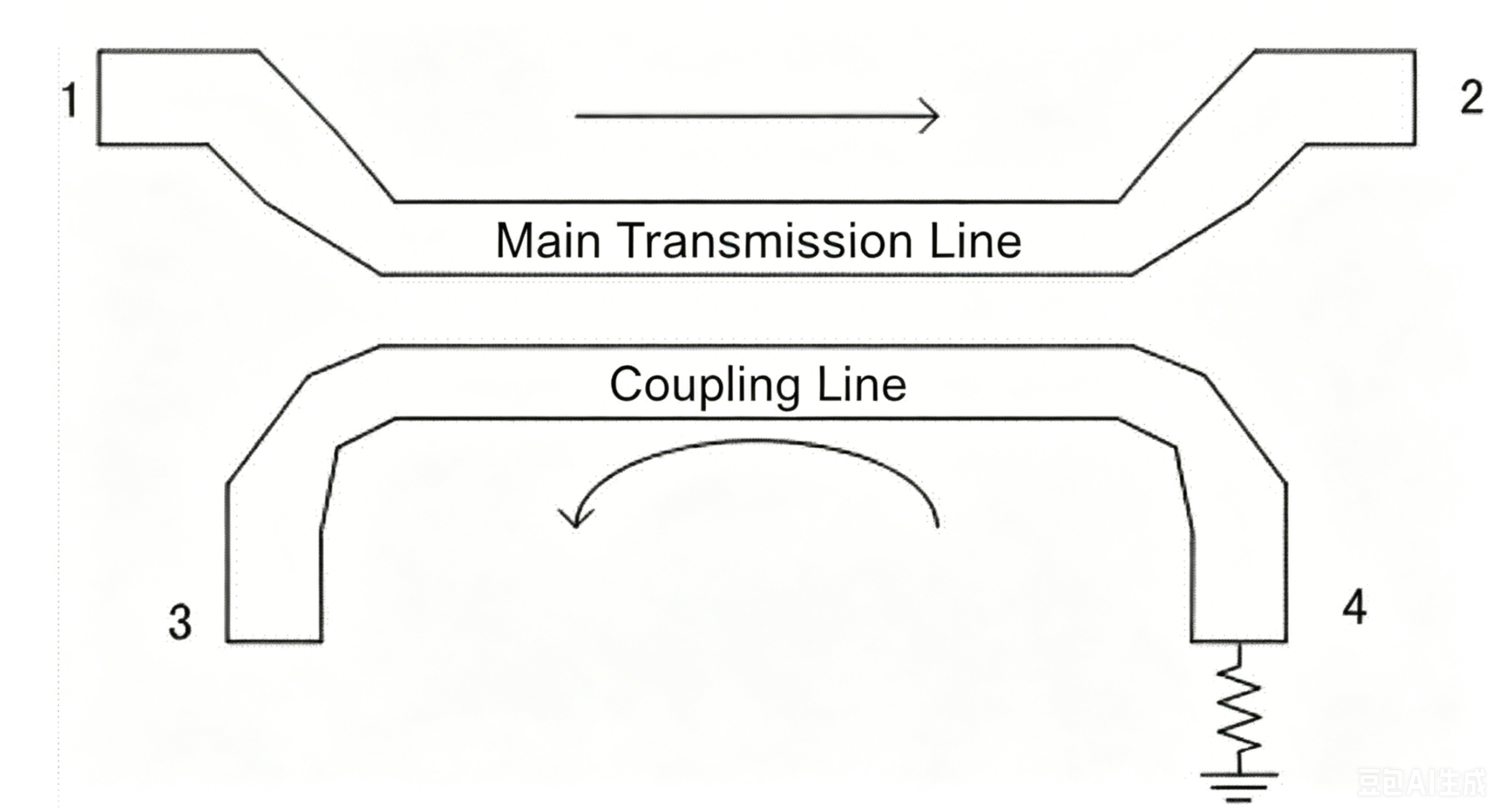

The diagram above illustrates the structure of a parallel coupled-line directional coupler. It consists of two closely spaced, parallel transmission lines: one is the main signal line, and the other is the coupled line.

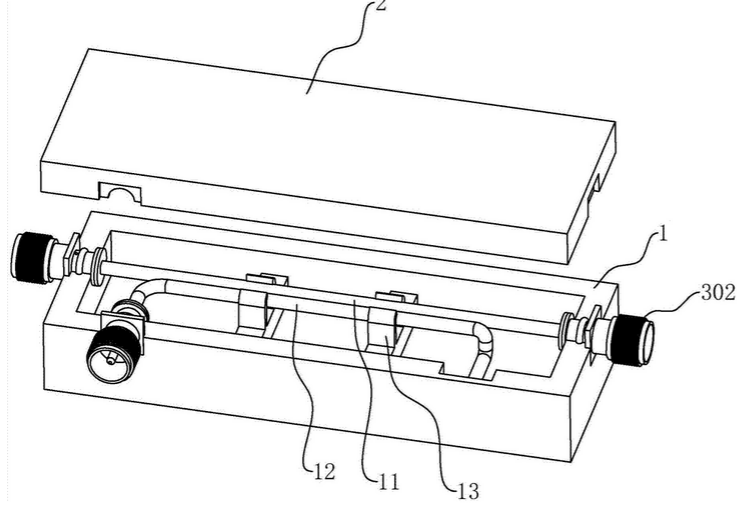

This type of coupler can be implemented with microstrip or stripline technology. For high-power, low-loss applications, engineers typically adopt air-cavity stripline structures, as displayed in the following figure.

Analysis of Parallel Coupled Line Directional Coupler

Qualitative Analysis

The picture above shows a common parallel-line directional coupler, with a coupling line length L. Let’s assume port 1 is where the RF signal enters, and obviously, port 2 is the through port for the signal. Now let’s qualitatively analyze the RF signal characteristics at ports 3 and 4 to figure out which is the coupled port and which is the isolated port？

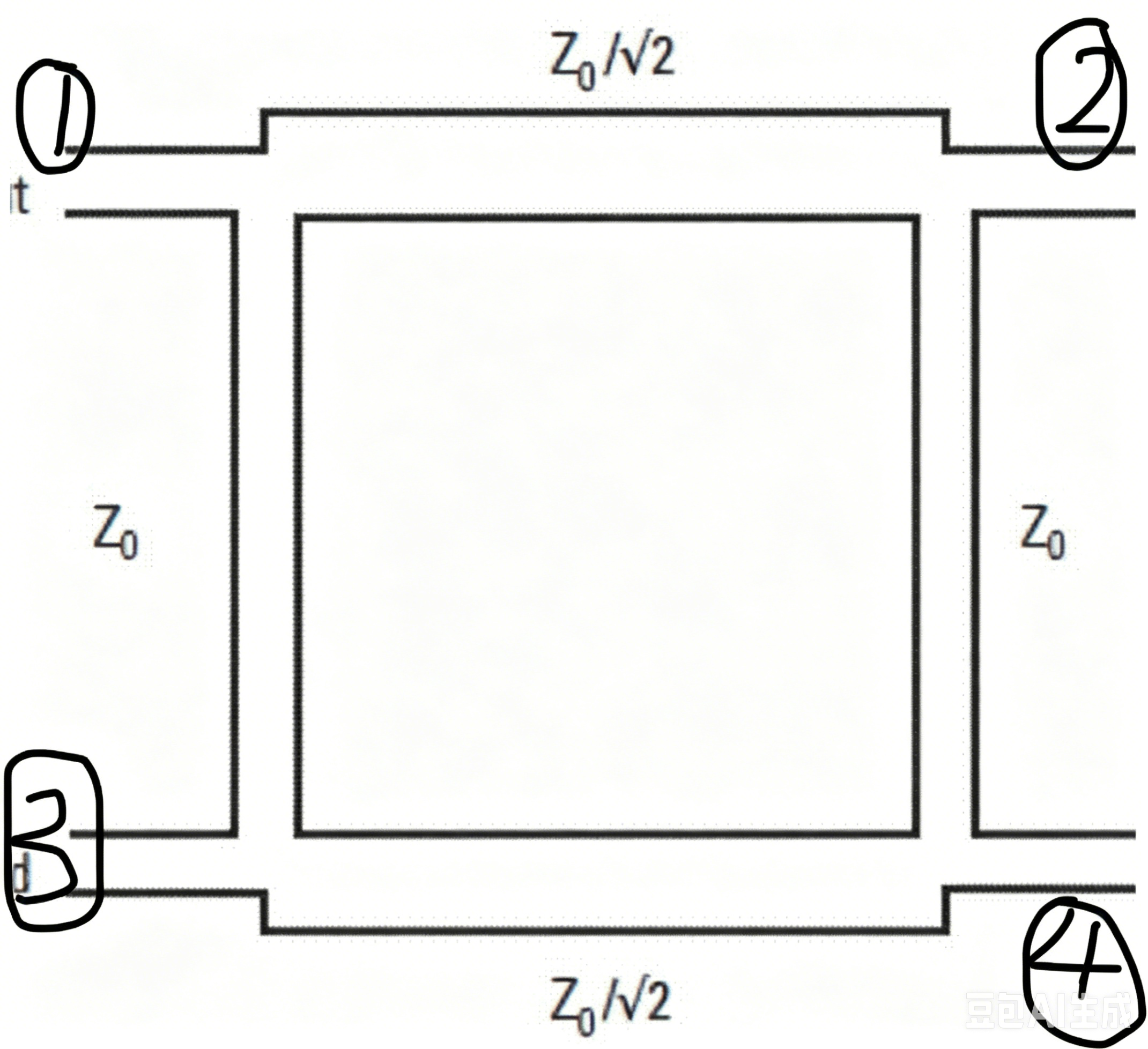

Let’s first recall the qualitative analysis of the branch-line directional coupler. We use the phase difference of the signals to determine the coupled port and the isolated port. Now look at the figure – do you know which one is the isolated port and which one is the coupled port? For RF engineers, it’s recommended to remember this well.

So for a coupled-line coupler, how can we quickly figure out the coupled port and the isolated port?

Let’s start with two core concepts.

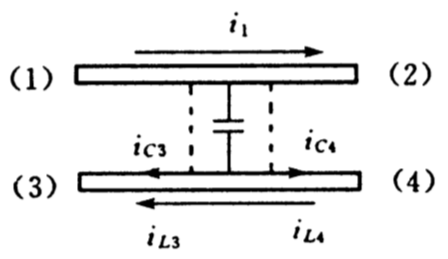

Two tightly spaced transmission lines form a coupling capacitance C between them. The smaller the gap between lines, the higher this capacitance. Capacitively coupled currents ic3 and ic4 flow toward both ends of the coupled line.
An RF signal i1 travels along the main line. Per electromagnetic induction rules, an induced current iL will be generated on the coupled line. The flow direction of iL opposes that of i1.

At Port 3, ic3 and induced current iL3 flow in the same direction, so they add constructively.

At Port 4, capacitive current ic4 and induced current iL4 flow opposite to each other, leading to signal cancellation.

In ideal conditions, these two currents fully cancel out at Port 4, resulting in zero output signal. This makes Port 4 the isolated port, while Port 3 acts as the coupled port.

Parallel coupled-line directional couplers differ from branch-line types. Their coupled port and through port are swapped. For this reason, they are also known as reverse-type directional couplers.

Quantitative Analysis

The analysis method for parallel-line directional couplers is still the even-odd mode analysis. After some derivation and calculation, we came up with the important design formula：

Parallel Coupled Line Directional Couplers Design Example

Design a parallel-coupled line directional coupler with the specifications: center frequency 3.5 GHz, coupling factor C = 15 dB, output line characteristic impedance 50 Ω, dielectric substrate εr = 9.6, h = 1 mm.

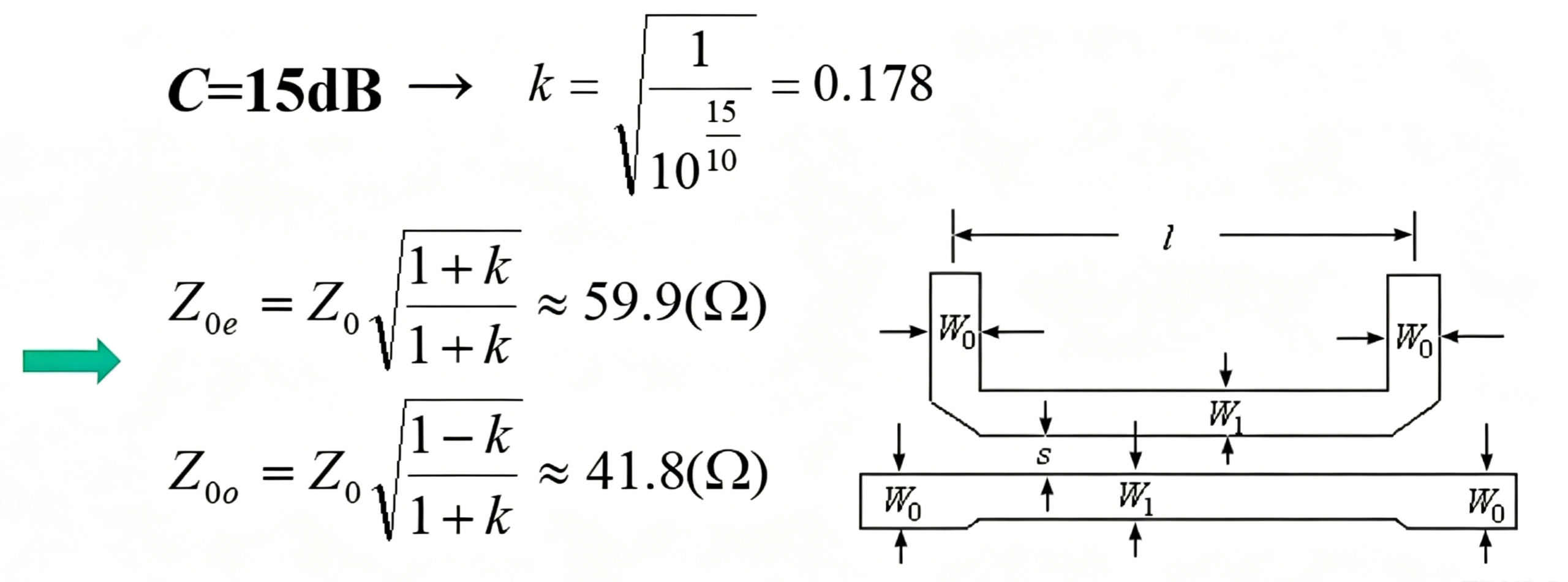

Step 1: Plug into the formula and calculate:

W1/h = 0.97, W1 = 0.97mm; s/h = 0.62, s = 0.62mm. The length of the coupled line segment is roughly considered equal to a quarter wavelength of a single uncoupled line. Using the microstrip line formula, the microstrip line width is calculated as: W0 = 0.99mm

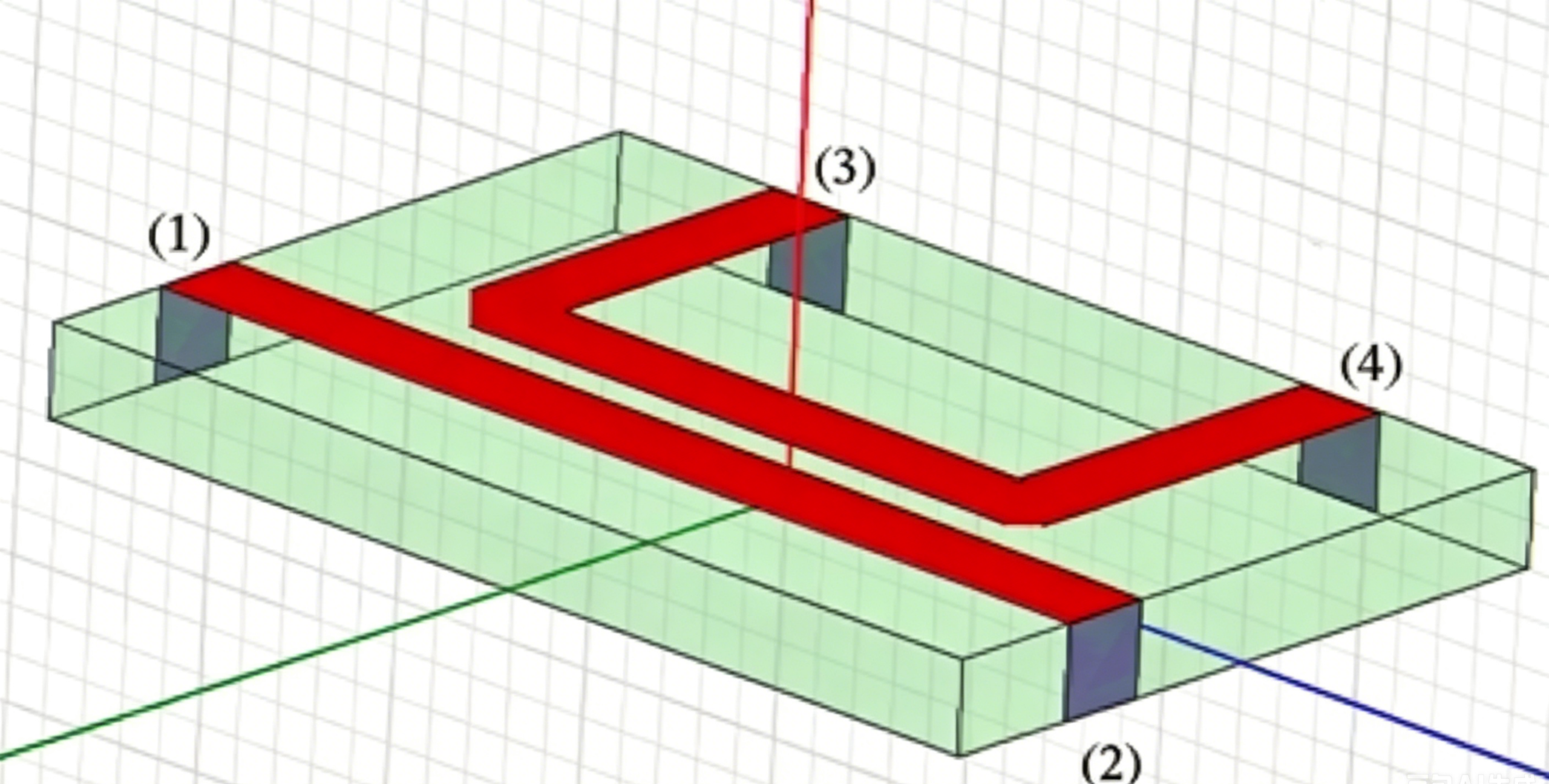

Step 2: Import into HFSS for modeling and simulation:

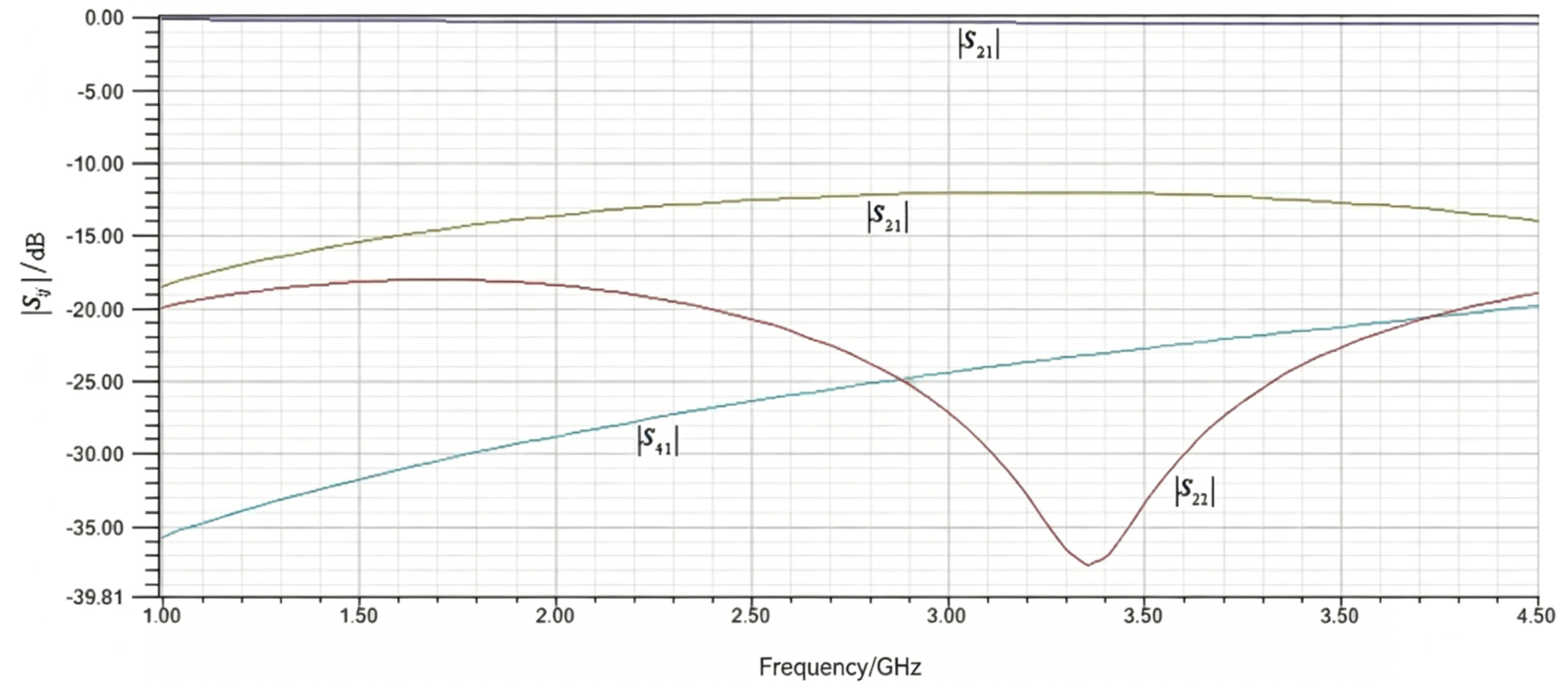

Step 3: The simulation results are as follows:

Conclusion: At the center frequency of 3.5GHz, the return loss |S11| <-33.5dB, isolation -|S41| = 23dB, and coupling -|S31| ≈ 12dB, basically meeting the design requirements.

Wideband Design of A Parallel-line Directional Coupler

Multi-section λ/4 coupled lines are adopted to expand operating bandwidth. Design rules for this multi-section coupler are similar to distributed-element filter design. We treat each coupled segment as one filter section. By tuning the coupling coefficient of every segment, we can achieve standard filter responses at the coupled port. Common responses include maximally flat (Butterworth), equal ripple (elliptic), and controlled ripple (Chebyshev). Ripple means the maximum fluctuation of coupling magnitude within the passband. It is typically measured in dB, referenced to the target nominal coupling level.

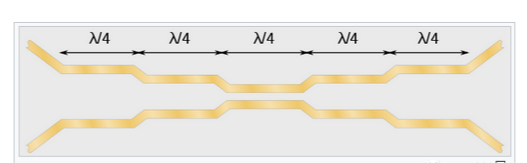

5-section planar format directional coupler

There are many types of couplers, but the common ones are these two: branch line and coupled line. There’s also a microstrip directional coupler called the Lange coupler that achieves tight coupling. We’ll learn about it in a later post.

Conclusion

Parallel coupled line directional couplers are a key RF passive component widely used in communication systems, radar, aerospace, and measurement applications. In this article, we explored their operating principles, odd-even mode analysis, design process, and HFSS simulation results.

Compared with branch-line directional couplers, parallel coupled-line couplers feature a different port configuration and provide a flexible solution for RF signal coupling. By optimizing coupled-line dimensions and using multi-section structures, engineers can achieve better bandwidth performance and meet the requirements of modern wideband RF systems.
