2-6 GHz 23 DBM Rf Amplifier Broadband Performance Reliability 14 DB Small Signal Gain
-
Highlight
2-6 GHz 23 DBM Rf Amplifier
,Broadband Performance Rf Amplifier
,Small Signal Gain Rf Amplifier
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
Global ComplianceCE, RoHS, And REACH
-
Temperature Range-40~85℃
-
Frequency Range2 To 6 GHz
-
Power Output23dBm
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-020060-G14P23
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
2-6 GHz 23 DBM Rf Amplifier Broadband Performance Reliability 14 DB Small Signal Gain
2-6 GHz 23 DBM RF Amplifier Broadband Performance Reliability 14 DB Small Signal Gain
Product Overview

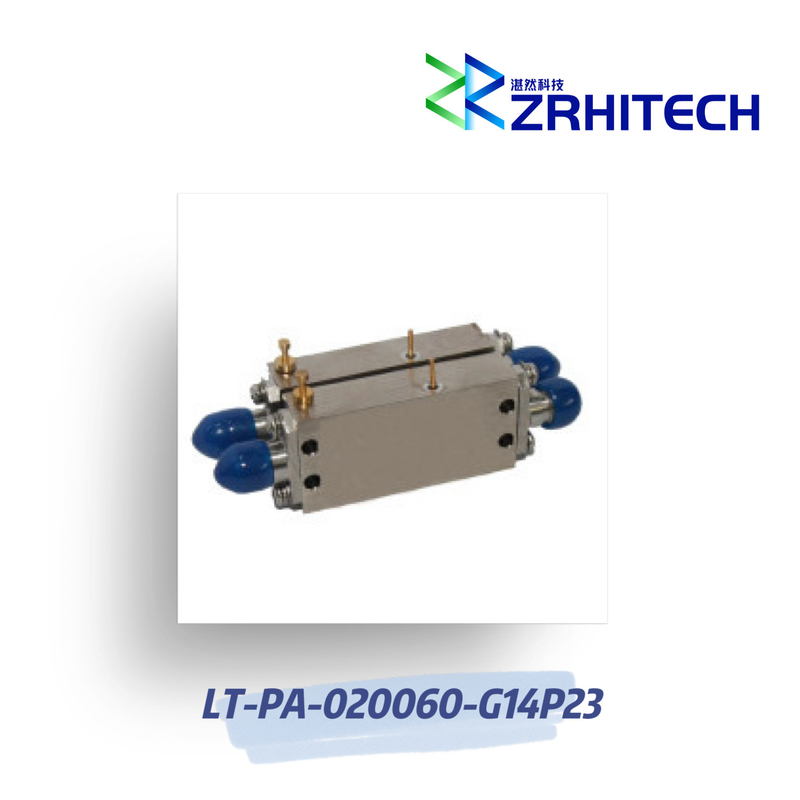

The ZR LT-PA-020060-G14P23 is a high-performance RF power amplifier featuring 14dB gain (±1.0dB flatness) across 2-6GHz, with 23dBm output power capability. Designed for demanding RF applications, this amplifier combines power efficiency with exceptional signal fidelity.
Key Features
- Broadband Performance (2-6GHz): Optimized for multi-band applications
- High Power Output (23dBm): Delivers robust signal amplification
- Precision Gain (14dB): ±1.0dB flatness ensures signal integrity
- Rugged Aluminum Enclosure: Provides superior EMI protection
- Wide Temperature Range (-40℃~+85℃): Reliable operation in extreme conditions
- Custom Frequency Options: Tailored to specific system requirements
- Global Compliance: CE, RoHS, and REACH certified
- Quality Assurance: Backed by 1-year warranty
Technical Specifications
| Attribute | Value | Conditions |
|---|---|---|
| Part Number | LT-PA-020060-G14P23 | |
| Configuration | Module with Connector | |
| Frequency Range | 2 to 6 GHz | |
| Small Signal Gain | 14 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 23 dBm | |
| Input Power | 15 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 150mA | |
| Operating Temperature | -40 to +85 ℃ | |
| Dimension | 34.4*16.8*8.1 mm |
Product Attributes
| Attribute | Value |
|---|---|
| Product name | LT-PA series Power Amplifier |
| Application | Wireless Communication |
| Global Compliance | CE, RoHS, and REACH |
| Temperature Range | -40~85℃ |
| Frequency range | 2 to 6 GHz |
| Power Output | 23dBm |
Note: For custom specifications, please contact us directly.
