| Brand Name: | ZR Hi-Tech |
| Model Number: | LT-LA-010180-G30P10 |
| MOQ: | 1 |
| Delivery Time: | 4 weeks |
| Payment Terms: | T/T |

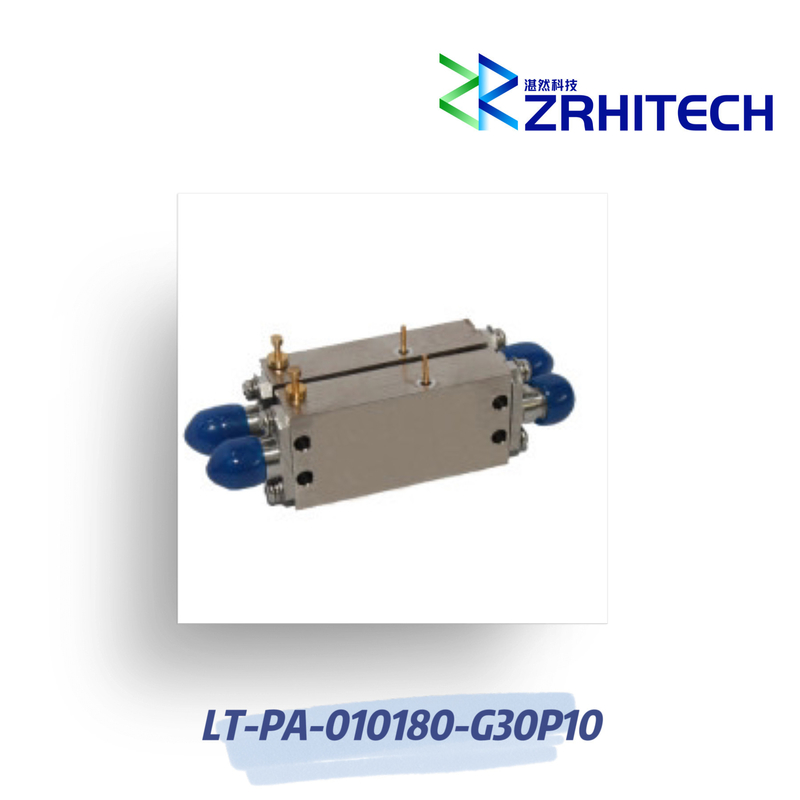

The ZR LT-LA-010180-G30P10 is a high-performance RF amplifier delivering 30dB gain (±2.5dB flatness) across 1-18GHz, with 10dBm output power capability. Engineered for precision signal amplification, this low-noise amplifier (LNA) is ideal for demanding RF systems requiring both wide bandwidth and exceptional signal fidelity.
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-010180-G30P10 | |
| Frequency Range | 1-18GHz | |
| Small Signal Gain | 30dB Min. | |
| Gain Flatness | +/-2.5dB Min. | |
| Noise Figure | 3.5dB Max.; 3.0dB Typ. | |
| Input VSWR | 2.2:1 Max. | |
| Output VSWR | 2.2:1 Max. | |
| Output Power | 10dBm Min. | |
| Power Supply | +12V/120mA | |
| Operating Temperature | -45 to +85 ℃ | |
| Connectors | SMA-Female | |
| Dimension | 34.4x16.8x8.1mm |
