Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~50℃
-
Frequency Range3 To 6 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA030060-G50P50
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
3 to 6 GHz 50dBm Power Amplifier with 50 dB Small Signal Gain
3 to 6 GHz 50dBm Power Amplifier with 50 dB Small Signal Gain
Product Attributes
| Attribute | Value |
|---|---|
| Product name | LT-PA series Power Amplifier |
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~50℃ |
| Frequency range | 3 to 6 GHz |
| Color | Silver |
Product Overview

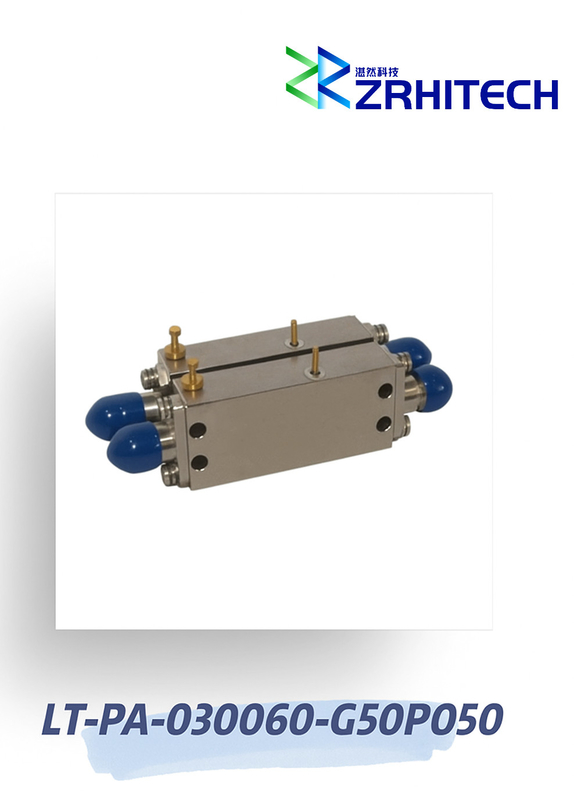

The LT-PA-030060-G50P50 is a high-performance RF power amplifier designed for wireless communication applications, featuring a broad frequency range of 3 to 6 GHz with exceptional 50dB small signal gain.
Key Features
- Durable aluminum housing for robust protection
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +50℃
- 50dB small signal gain for superior performance
- High 50dBm output power capability
- Compliance with CE, RoHS, and REACH standards
- Includes 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-030060-G50P50 | |
| Configuration | Module with Connector | |
| Frequency Range | 3 to 6 GHz | |
| Small Signal Gain | 50 dB | |
| Gain Flatness | ±3.5 dB | |
| Output Power | 50dBm | |
| Input Power | 7W2 | |
| VSWR | 2.5:1 | |
| Power Supply | +48V / 12A | |
| Operating Temperature | -40 to +50 ℃ | |
| Dimension | 300x160x40 mm |
Note: Custom specifications available upon request. Please contact us for tailored solutions.
Product Dimensions
