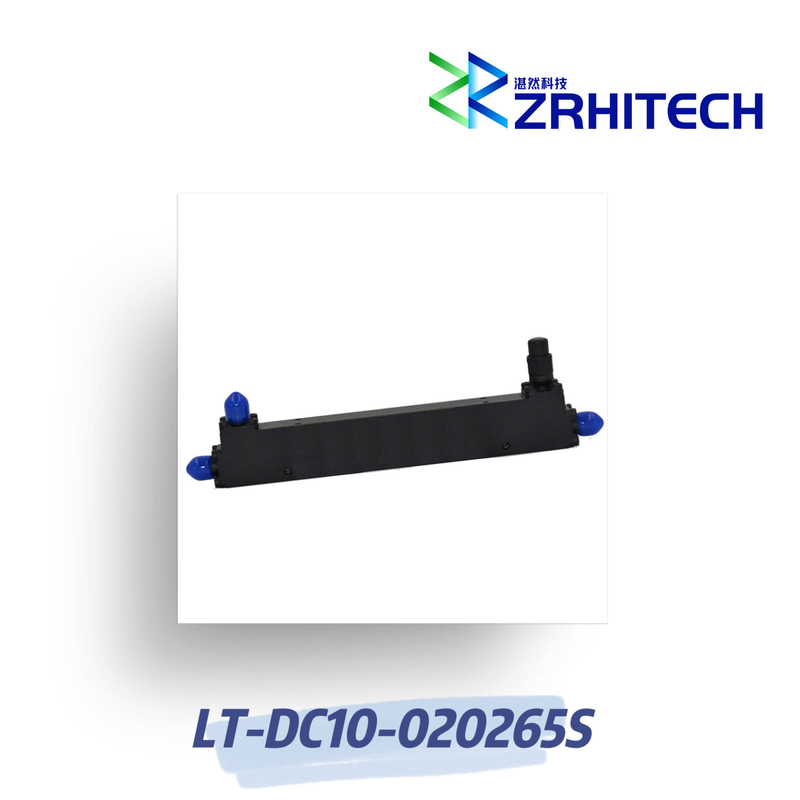

20 Watts LT-DC Series 10dB Directional Coupler Ideal for 2 to 26.5 GHz Frequency Range
-
Highlight
26.5 GHz Directional Coupler
,20 Watts Directional Coupler
,10dB Directional Coupler
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-DC10-020265S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T,D/A,D/P
20 Watts LT-DC Series 10dB Directional Coupler Ideal for 2 to 26.5 GHz Frequency Range
20 Watts LT-DC Series 10dB Directional Coupler for 2 to 26.5 GHz Frequency Range
Product Overview
The LT-DC10-020265S is a high-performance 10dB directional coupler designed for applications in the 2 to 26.5 GHz frequency range. This robust component features SMA female connectors and complies with CE, RoHS, and REACH standards.
Key Features
- Frequency Range: 2 to 26.5 GHz
- Coupling: 10±0.5 dB
- Directivity: >13 dB
- VSWR: <1.5:1
- Max Power Handling: 20 Watts (CW)
- Connectors: SMA Female
- Compliance: CE, RoHS, REACH
- Warranty: 1 Year
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-DC10-020265S | |
| Frequency Range | 2 to 26.5 GHz | |
| Coupling | 10±0.5 dB | |
| Impedance | 50 Ohms | |
| Main Line VSWR | 1.5:1 Max. | |
| Coupling VSWR | 1.5:1 Max. | |
| Insertion Loss | 1.5 dB Max. | |
| Frequency Balance | 1.4 dB Max. | |
| Directivity | 13 dB Min. | |
| Input Power | 20 W | |
| Connectors | SMA Female | |
| Weight | 80 g | |
| Dimensions | 57.2×17.8×12.7 mm |
Outline Drawing
For custom specifications or additional information, please contact our technical team.
