Highlight
6dB Directional Coupler
,10 Watts Directional Coupler
,18 GHz Directional Coupler
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-DC6-020180S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T,D/A,D/P

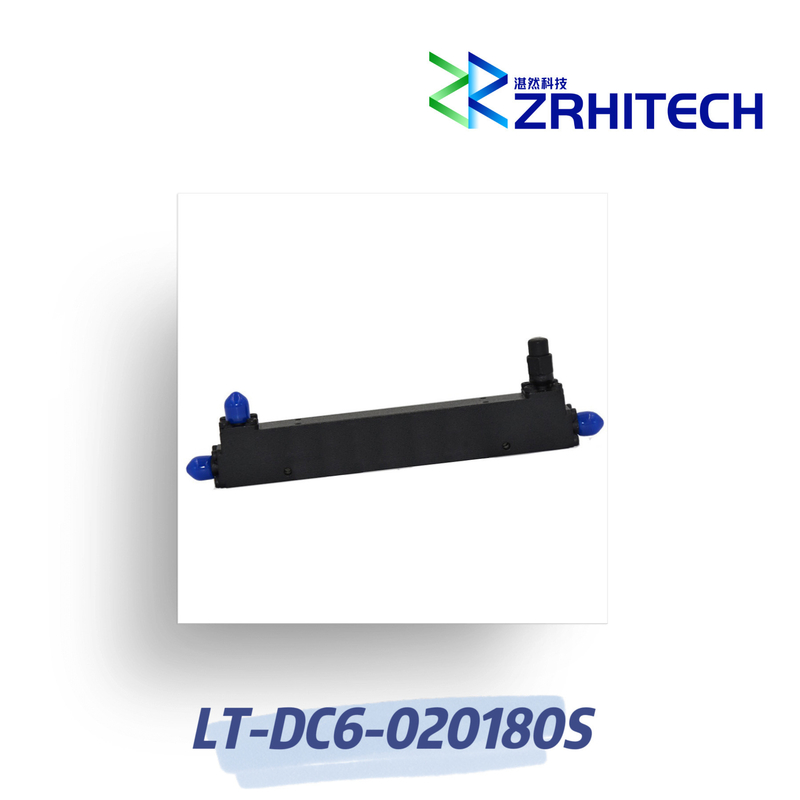

2 to 18 GHz 10 Watts LT-DC Series 6dB Directional Coupler
2 to 18 GHz 6dB Directional Coupler
Quick Detail:
·6dB Directional Coupler
· Directivity > 14 dB
· 2 to 18 GHz Frequency Range
· Lost VSWR < 1.5:1
· Coupling 6±1.0 dB
· Max Power 10 Watts(CW)
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-DC6-020180S from ZR is a 6dB Directional Coupler that operates from 2 to 18 GHz and can handle up to 10 Watt (CW) with 14 dB directivity min and 1.5:1 VSWR max,The package interface uses SMA Female connectors and is REACH and RoHS compliant.More details for LT-DC6-020180S can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Items |
Specification |
Conditions |
|
Part Number |
LT-DC6-020180S |
|
|
Frequency Range |
2 to 18 GHz |
|
|
Coupling |
6±1.0 dB |
|
|
Impedance |
50 Ohms |
|
|
Main Line VSWR |
1.5:1 Max. |
|
|
Coupling VSWR |
1.5:1 Max. |
|
|
Insertion Loss |
2.1 dB Max. |
|
|
Frequency Balance |
1.6 dB Max. |
|
|
Directivity |
14 dB Min. |
|
|
Input Power |
10 W |
|
|
Connectors |
SMA Female |
|
|
Weight |
50 g |
|
|
Dimension |
57.2x17.8x12.7 mm |
|
|
Note: for custom specs, please contact us directly. |
||
Outline Drawing (Unit: mm):
