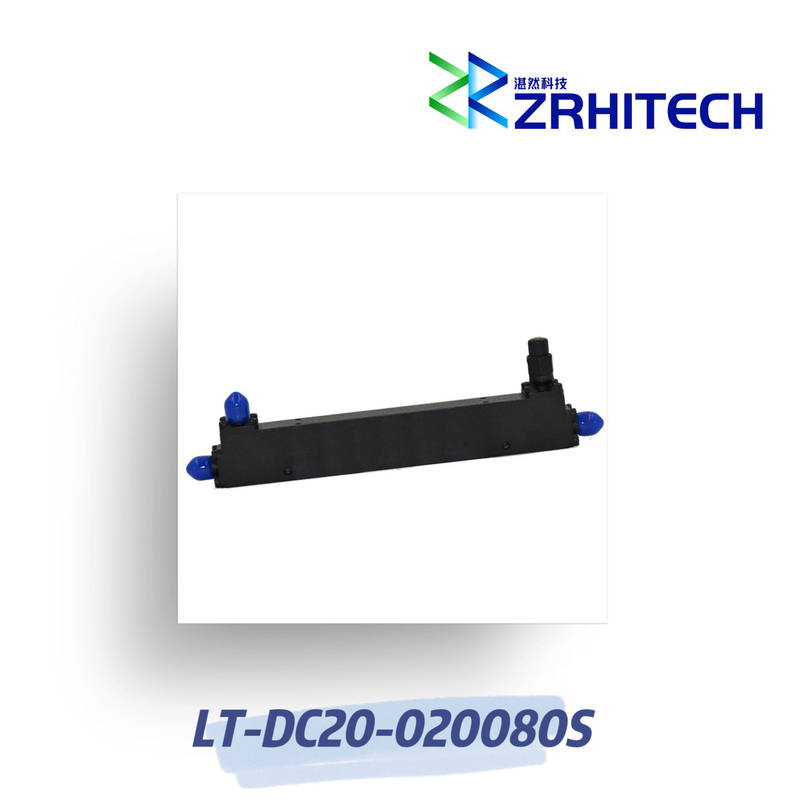

LT-DC Series 20dB Directional Coupler 20 Watts 2-8 GHz
LT-DC Series 20dB Directional Coupler 20 Watts 2-8 GHz
Quick Detail:
- 20dB Directional Coupler
- Directivity > 20 dB
- 2 to 8 GHz Frequency Range
- Lost VSWR < 1.4:1
- Coupling 20±0.6 dB
- Max Power 50 Watts(CW)
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-DC20-020080S from ZR is a 20dB Directional Coupler that operates from 2 to 8 GHz and can handle up to 50 Watt (CW) with 20 dB directivity min and 1.4:1 VSWR max. The package interface uses SMA Female connectors and is REACH and RoHS compliant.
Specifications:
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-DC20-020080S | |
| Frequency Range | 2 to 8 GHz | |
| Coupling | 20±0.6 dB | |
| Impedance | 50 Ohms | |
| Main Line VSWR | 1.4:1 Max. | |
| Coupling VSWR | 1.4:1 Max. | |
| Insertion Loss | 0.6 dB Max. | |
| Frequency Balance | 0.8 dB Max. | |
| Directivity | 20 dB Min. | |
| Input Power | 50 W | |
| Connectors | SMA Female | |
| Weight | 55 g | |
| Dimension | 57.2x12.7x17.8 mm |
Note: for custom specs, please contact us directly.
Outline Drawing:
