10 to 15 GHz 20 Watts LT-DC Series 10dB Directional Coupler for Precise Signal Splitting
10 to 15 GHz 20 Watts LT-DC Series 10dB Directional Coupler for Precise Signal Splitting
Product Overview

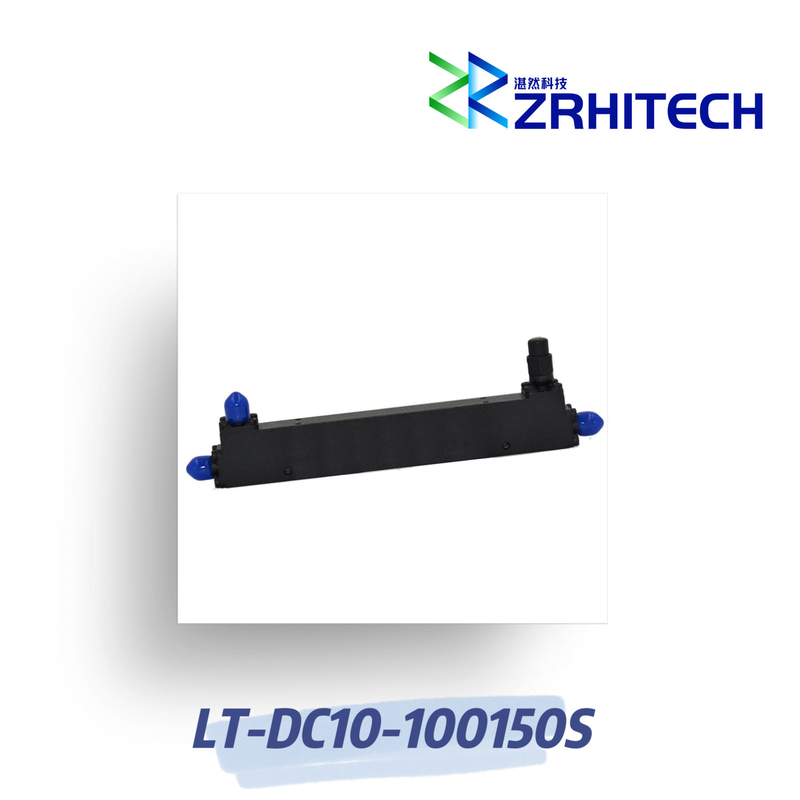

The LT-DC10-100150S is a high-performance 10dB directional coupler designed for precise signal splitting applications in the 10 to 15 GHz frequency range.
Key Features
- 10dB directional coupling with ±0.5 dB accuracy
- Excellent directivity > 13 dB
- Broad frequency range: 10 to 15 GHz
- Low VSWR < 1.5:1
- High power handling: 20 Watts (CW)
- SMA female connectors
- Compliance with CE, RoHS, and REACH standards
- Backed by 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-DC10-100150S | |
| Frequency Range | 10 to 15 GHz | |
| Coupling | 10±0.5 dB | |
| Impedance | 50 Ohms | |
| Main Line VSWR | 1.5:1 Max. | |
| Coupling VSWR | 1.5:1 Max. | |
| Insertion Loss | 1.2 dB Max. | |
| Frequency Balance | 1.2 dB Max. | |
| Directivity | 13 dB Min. | |
| Input Power | 20 W | |
| Connectors | SMA Female | |
| Weight | 45 g | |
| Dimensions | 31.8×15.9×12.7 mm |
Mechanical Outline
Note: Custom specifications available upon request. Please contact us for specialized requirements.
