| Brand Name: | ZR Hi-Tech |
| Model Number: | LT-DC10-265400K |
| MOQ: | 1 |
| Delivery Time: | 4 weeks |
| Payment Terms: | T/T,D/A,D/P |

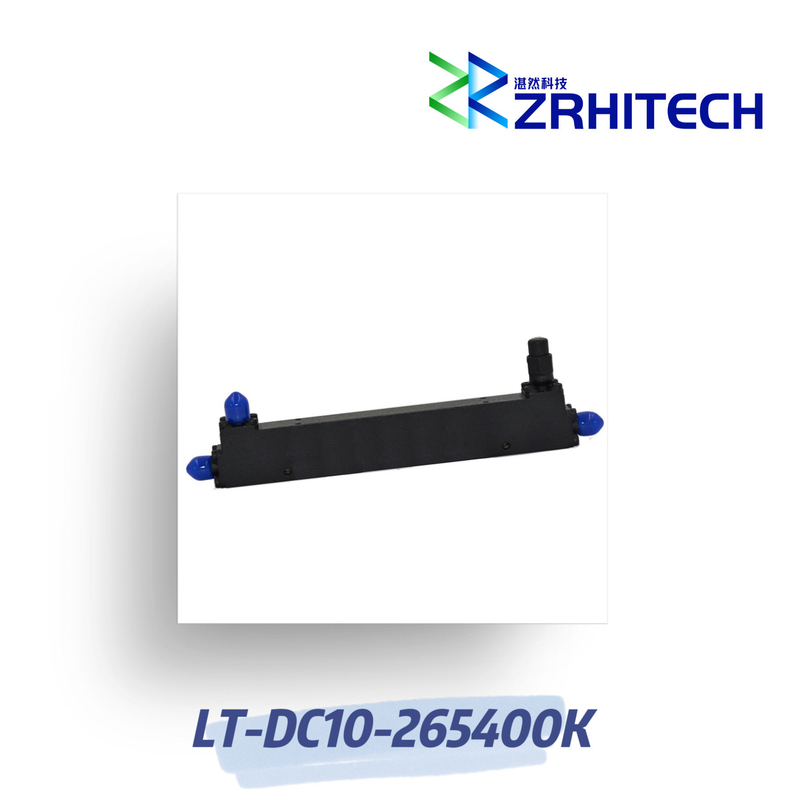

The LT-DC10-265400K is a high-performance 10dB directional coupler designed for demanding high-frequency applications from 26.5 to 40 GHz. With excellent directivity and low VSWR, this coupler delivers reliable performance for critical RF systems.
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-DC10-265400K | |
| Frequency Range | 26.5 to 40 GHz | |
| Coupling | 10±0.6 dB | |
| Impedance | 50 Ohms | |
| Main Line VSWR | 1.7:1 Max. | |
| Coupling VSWR | 1.7:1 Max. | |
| Insertion Loss | 1.5 dB Max. | |
| Frequency Balance | 1.0 dB Max. | |
| Directivity | 12 dB Min. | |
| Input Power | 20 W | |
| Connectors | 2.92mm Female | |
| Weight | 45 g | |
| Dimension | 31.8 × 15.9 × 12.7 mm |
