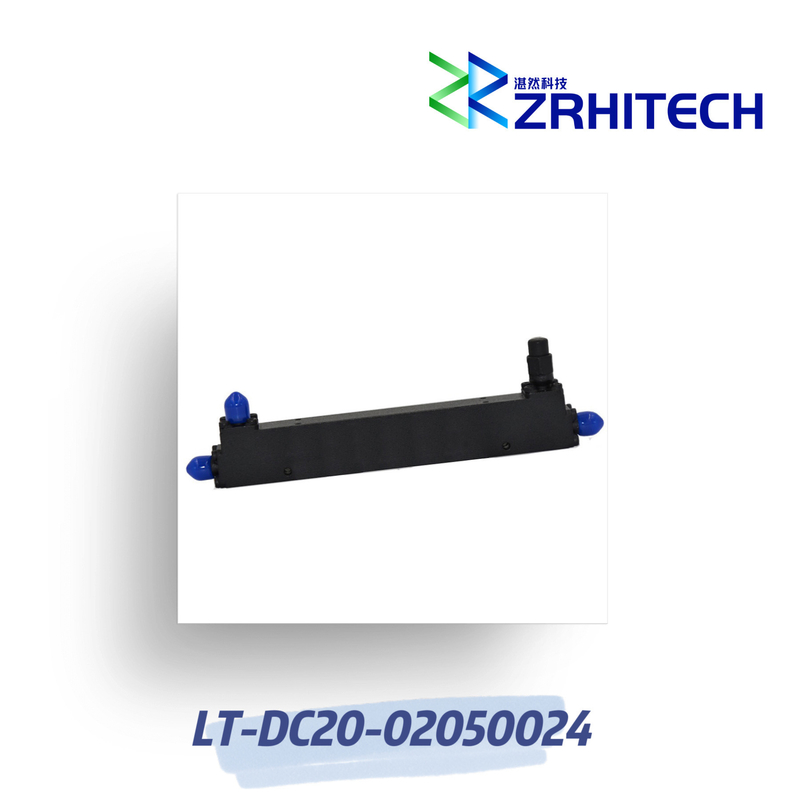

LT-DC Series 20dB Directional Coupler 20 Watts Power 2 to 50 GHz Frequency
LT-DC Series 20dB Directional Coupler 20 Watts Power 2 to 50 GHz Frequency
2 to 50 GHz 20dB Directional Coupler
Key Features:
- 20dB Directional Coupler
- Directivity > 9 dB
- 2 to 50 GHz Frequency Range
- Lost VSWR < 1.9:1
- Coupling 20±1.2 dB
- Max Power 20 Watts (CW)
- CE, RoHS, REACH compliant
- 1 Year Warranty
Product Description:
The LT-DC20-02050024 from ZR is a high-performance 20dB Directional Coupler operating from 2 to 50 GHz with a maximum power handling of 20 Watts (CW). Featuring minimum 9 dB directivity and maximum 1.9:1 VSWR, this coupler utilizes 2.4mm Female connectors and complies with REACH and RoHS standards.
Technical Specifications:
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-DC20-02050024 | |
| Frequency Range | 2 to 50 GHz | |
| Coupling | 20±1.2 dB | |
| Impedance | 50 Ohms | |
| Main Line VSWR | 1.9:1 Max. | |
| Coupling VSWR | 1.9:1 Max. | |
| Insertion Loss | 1.8 dB Max. | |
| Frequency Balance | 3.0 dB Max. | |
| Directivity | 9 dB Min. | |
| Input Power | 20 W | |
| Connectors | 2.4mm Female | |
| Weight | 80 g | |
| Dimension | 57.2*17.8*12.7 mm |
Note: For custom specifications, please contact us directly.
