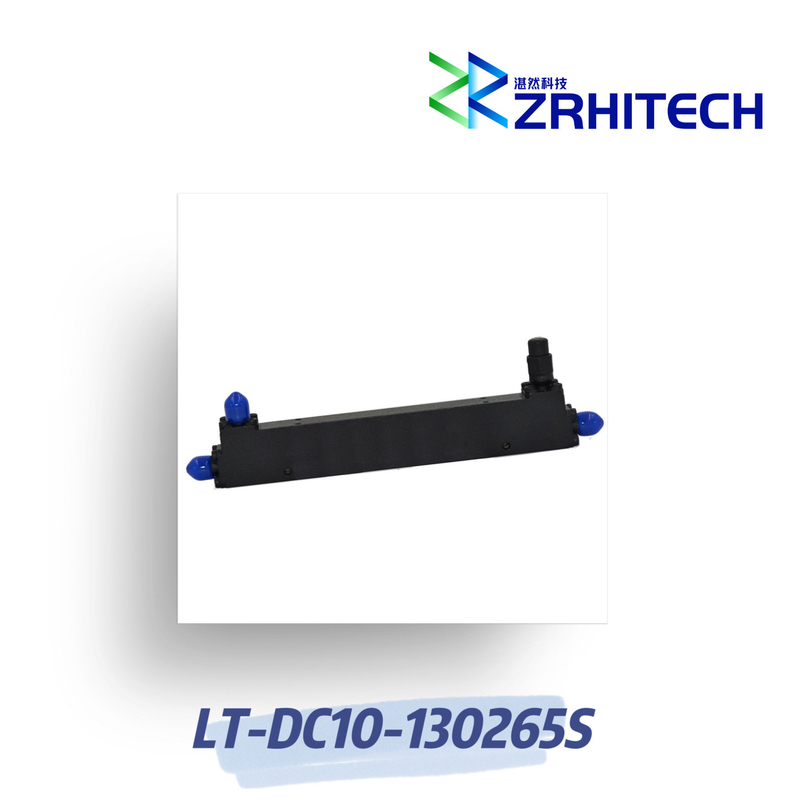

20 Watts LT-DC Series 10dB Directional Coupler Perfect for 13 to 26.5 GHz Needs
-
Highlight
LT-DC Series Directional Coupler
,13 to 26.5 GHz Directional Coupler
,20 Watts Directional Coupler
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-DC10-130265S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T,D/A,D/P
20 Watts LT-DC Series 10dB Directional Coupler Perfect for 13 to 26.5 GHz Needs
20 Watts LT-DC Series 10dB Directional Coupler Perfect for 13 to 26.5 GHz Needs
Product Overview
13 to 26.5 GHz 10dB Directional Coupler
Key Features
- 10dB Directional Coupler
- Directivity > 12 dB
- 13 to 26.5 GHz Frequency Range
- Lost VSWR < 1.4:1
- Coupling 10±0.5 dB
- Max Power 20 Watts (CW)
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description
The LT-DC10-130265S from ZR is a high-performance 10dB Directional Coupler designed for applications from 13 to 26.5 GHz. With a maximum power handling of 20 Watts (CW), it features minimum 12 dB directivity and maximum 1.4:1 VSWR. The unit comes with SMA Female connectors and complies with REACH and RoHS standards.
Technical Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-DC10-130265S | |
| Frequency Range | 13 to 26.5 GHz | |
| Coupling | 10±0.5 dB | |
| Impedance | 50 Ohms | |
| Main Line VSWR | 1.4:1 Max. | |
| Coupling VSWR | 1.4:1 Max. | |
| Insertion Loss | 1.0 dB Max. | |
| Frequency Balance | 1.0 dB Max. | |
| Directivity | 12 dB Min. | |
| Input Power | 20 W | |
| Connectors | SMA Female | |
| Weight | 45 g | |
| Dimension | 31.8x12.7x15.9 mm |
Note: for custom specifications, please contact us directly.
Outline Drawing
