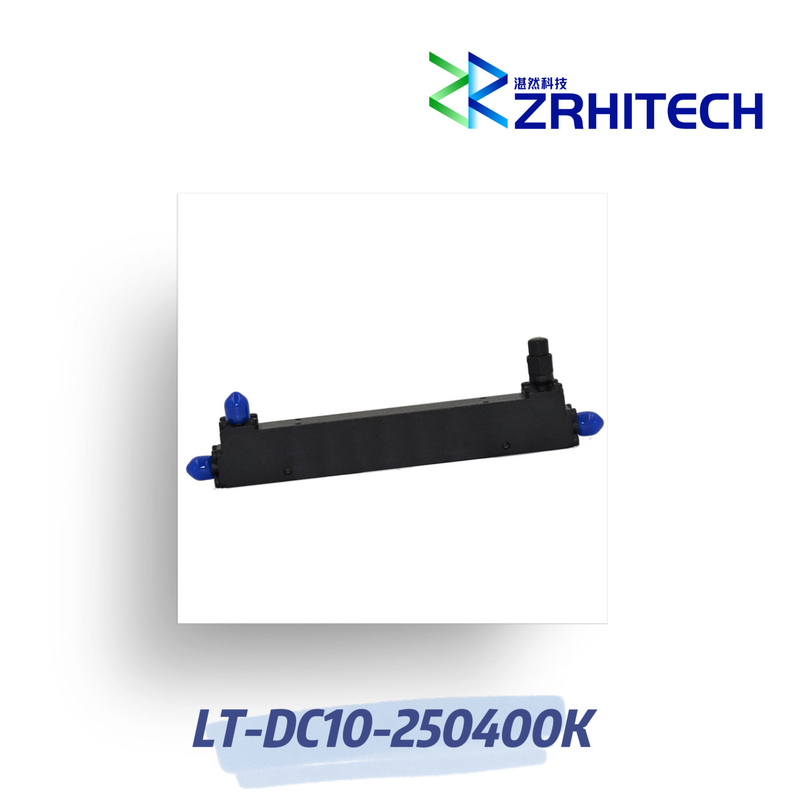

LT-DC Series 10dB Directional Coupler 25-40 GHz 20W Power Handling Essential for Satellite Communications
-
Highlight
Satellite Communications Directional Coupler
,20W Directional Coupler
,25-40 GHz Directional Coupler
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-DC10-250400K
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T,D/A,D/P
LT-DC Series 10dB Directional Coupler 25-40 GHz 20W Power Handling Essential for Satellite Communications
25 to 40 GHz 10dB Directional Coupler
Quick Detail:
· 10dB Directional Coupler
· Directivity > 11 dB
· 25 to 40 GHz Frequency Range
· Lost VSWR < 1.7:1
· Coupling 10±0.6 dB
· Max Power 20 Watts(CW)
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-DC10-250400K from ZR is a 10dB Directional Coupler that operates from 25 to 40 GHz and can handle up to 20 Watt (CW) with 11 dB directivity min and 1.7:1 VSWR max,The package interface uses 2.92mm Female connectors and is REACH and RoHS compliant.More details for LT-DC10-250400K can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Items |
Specification |
Conditions |
|
Part Number |
LT-DC10-250400K |
|
|
Frequency Range |
25 to 40 GHz |
|
|
Coupling |
10±0.6 dB |
|
|
Impedance |
50 Ohms |
|
|
Main Line VSWR |
1.7:1 Max. |
|
|
Coupling VSWR |
1.7:1 Max. |
|
|
Insertion Loss |
1.5 dB Max. |
|
|
Frequency Balance |
1.0 dB Max. |
|
|
Directivity |
11 dB Min. |
|
|
Input Power |
20 W |
|
|
Connectors |
2.92mm Female |
|
|
Weight |
40 g |
|
|
Dimension |
31.8x15.9x12.7 mm |
|
|
Note: for custom specs, please contact us directly. |
||
Outline Drawing (Unit: mm):
