1 to 32 GHz 20 Watts LT-DC Series 10dB Directional Coupler

Name: 1 to 32 GHz 20 Watts LT-DC Series 10dB Directional Coupler
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-DC10-010320K-1
Availability: InStock

Brand Name:	ZR Hi-Tech
Model Number:	LT-DC10-010320K-1
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	T/T,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Packaging Details:

carton packing

Product Description

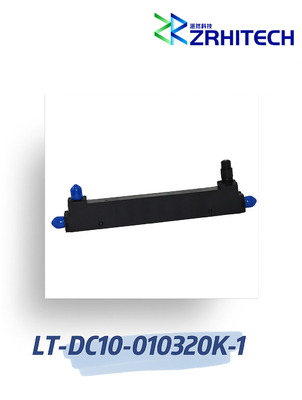

1 to 32 GHz 20 Watts LT-DC Series 10dB Directional Coupler

Product Overview

The LT-DC10-010320K-1 is a high-performance 10dB directional coupler designed for applications requiring precise signal sampling across a broad frequency spectrum from 1 to 32 GHz.

Key Features

10dB Directional Coupler with excellent signal isolation
Broad frequency range: 1 to 32 GHz operation
High directivity: >12 dB minimum
Low VSWR: <1.6:1 for optimal signal integrity
Precision coupling: 10±0.6 dB accuracy
High power handling: 20 Watts (CW) maximum
Compliant with CE, RoHS, and REACH standards
Backed by a 1-year warranty

Technical Specifications

Parameter	Specification	Conditions
Part Number	LT-DC10-010320K-1
Frequency Range	1 to 32 GHz
Coupling	10±0.6 dB
Impedance	50 Ohms
Main Line VSWR	1.6:1 Max.
Coupling VSWR	1.6:1 Max.
Insertion Loss	2.7 dB Max.
Frequency Balance	1.6 dB Max.
Directivity	12 dB Min.
Input Power	20 W
Connectors	2.92mm Female
Weight	80 g
Dimensions	88.9×12.7×18.5 mm

Mechanical Outline

Note: Custom specifications available upon request. Contact our technical team for specialized requirements.
