25 to 27 GHz 20 Watts LT-DC Series 6dB Directional Coupler

Name: 25 to 27 GHz 20 Watts LT-DC Series 6dB Directional Coupler
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-DC6-250270S
Availability: InStock

Brand Name:	ZR Hi-Tech
Model Number:	LT-DC6-250270S
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	T/T,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Packaging Details:

carton packing

Product Description

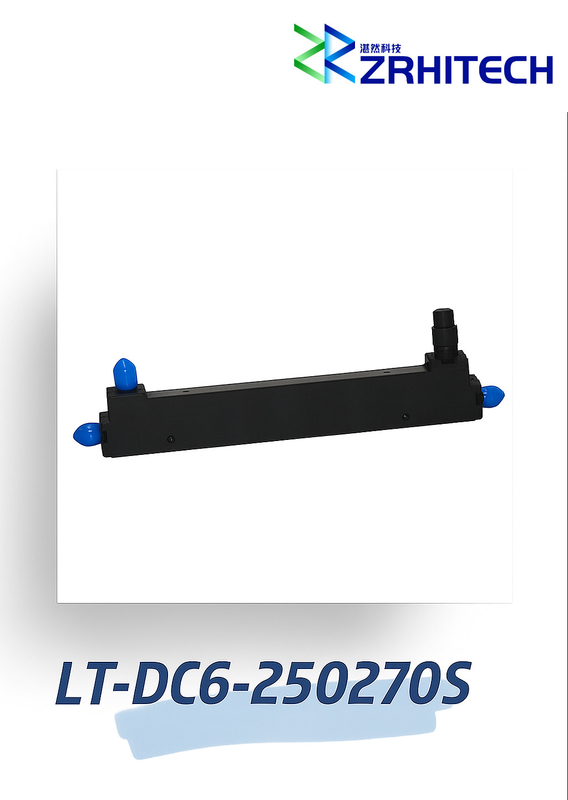

25 to 27 GHz 20 Watts LT-DC Series 6dB Directional Coupler

Quick Detail:

6dB Directional Coupler
Directivity > 18 dB
25 to 27 GHz Frequency Range
Lost VSWR < 1.5:1
Coupling 6±0.5 dB
Max Power 20 Watts(CW)
CE, RoHS, REACH compliant
1 Year Warranty

Description:

The LT-DC6-250270S from ZR is a 6dB Directional Coupler that operates from 25 to 27 GHz and can handle up to 20 Watt (CW) with 18 dB directivity min and 1.5:1 VSWR max. The package interface uses SMA Female connectors and is REACH and RoHS compliant.

Specifications:

Electrical / Optical Characteristics (Ta=25℃± 3℃)

Items	Specification	Conditions
Part Number	LT-DC6-250270S
Frequency Range	25 to 27 GHz
Coupling	6±0.5 dB
Impedance	50 Ohms
Main Line VSWR	1.5:1 Max.
Coupling VSWR	1.5:1 Max.
Insertion Loss	2.2 dB Max.
Frequency Balance	0.8 dB Max.
Directivity	18 dB Min.
Input Power	20 W
Connectors	SMA Female
Weight	50 g
Dimension	31.8x12.7x15.9 mm

Note: for custom specs, please contact us directly.
