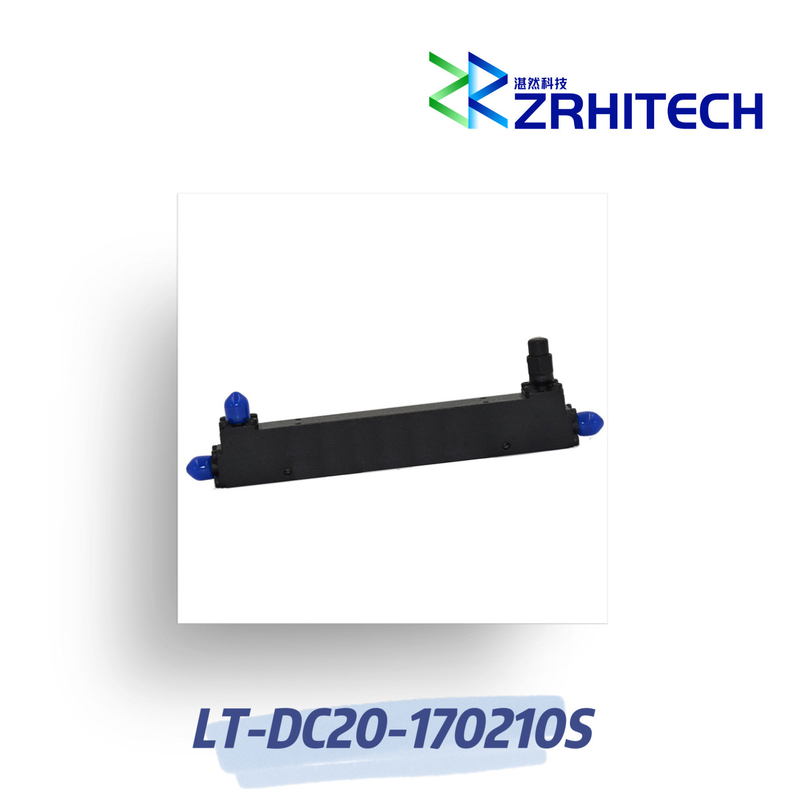

17 to 21 GHz 20 Watts LT-DC Series 20dB Directional Coupler
17 to 21 GHz 20 Watts LT-DC Series 20dB Directional Coupler
Quick Detail:
- 20dB Directional Coupler
- Directivity > 16 dB
- 17 to 21 GHz Frequency Range
- Lost VSWR < 1.4:1
- Coupling 20±0.5 dB
- Max Power 20 Watts (CW)
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-DC20-170210S from ZR is a 20dB Directional Coupler that operates from 17 to 21 GHz and can handle up to 20 Watt (CW) with 16 dB directivity min and 1.4:1 VSWR max. The package interface uses SMA Female connectors and is REACH and RoHS compliant.
Specifications:
Electrical / Optical Characteristics (Ta=25℃± 3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-DC20-170210S | |
| Frequency Range | 17 to 21 GHz | |
| Coupling | 20±0.5 dB | |
| Impedance | 50 Ohms | |
| Main Line VSWR | 1.4:1 Max. | |
| Coupling VSWR | 1.4:1 Max. | |
| Insertion Loss | 0.7 dB Max. | |
| Frequency Balance | 0.8 dB Max. | |
| Directivity | 16 dB Min. | |
| Input Power | 20 W | |
| Connectors | SMA Female | |
| Weight | 45 g | |
| Dimension | 31.8x15.9x12.7 mm |
Note: for custom specs, please contact us directly.
Outline Drawing (Unit: mm):
