1 to 26.5 GHz 20 Watts LT-DC Series 10dB Directional Coupler for Industrial Us
1 to 26.5 GHz 10dB Directional Coupler
Quick Detail:
· 10dB Directional Coupler
· Directivity > 13 dB
· 1 to 26.5 GHz Frequency Range
· Lost VSWR < 1.6:1
· Coupling 10±0.5 dB
· Max Power 20 Watts(CW)
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:

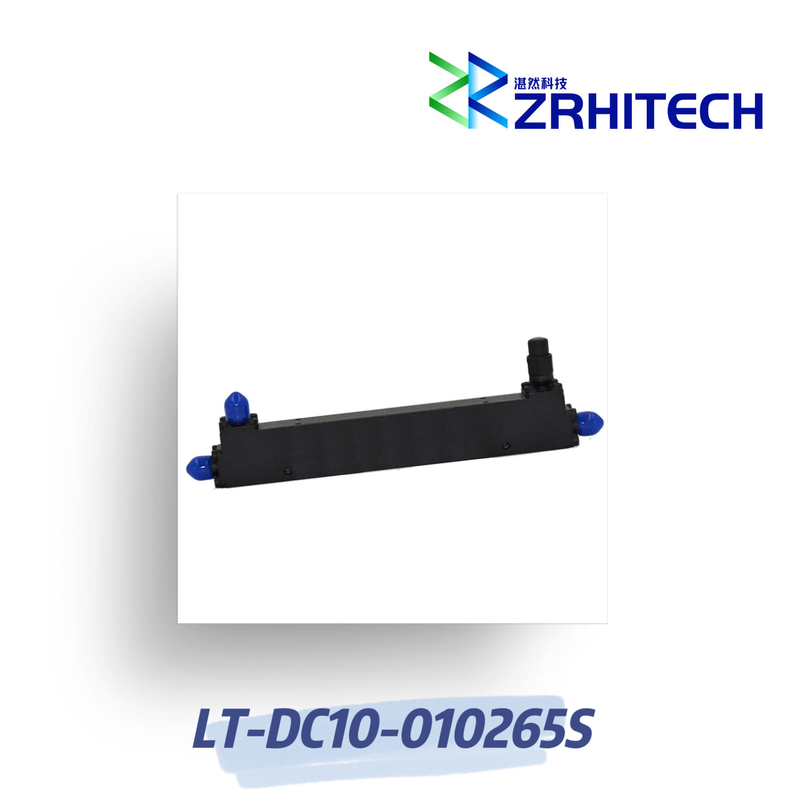

The LT-DC10-010265S from ZR is a 10dB Directional Coupler that operates from 1 to 26.5 GHz and can handle up to 20 Watt (CW) with 13 dB directivity min and 1.6:1 VSWR max,The package interface uses SMA Female connectors and is REACH and RoHS compliant.More details for LT-DC10-010265S can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Items |
Specification |
Conditions |
|
Part Number |
LT-DC10-010265S |
|
|
Frequency Range |
1 to 26.5 GHz |
|
|
Coupling |
10±0.5 dB |
|
|
Impedance |
50 Ohms |
|
|
Main Line VSWR |
1.6:1 Max. |
|
|
Coupling VSWR |
1.6:1 Max. |
|
|
Insertion Loss |
1.8 dB Max. |
|
|
Frequency Balance |
1.6 dB Max. |
|
|
Directivity |
13 dB Min. |
|
|
Input Power |
20 W |
|
|
Connectors |
SMA Female |
|
|
Weight |
80 g |
|
|
Dimension |
88.9x12.7x18.5 mm |
|
|
Note: for custom specs, please contact us directly. |
||
Outline Drawing (Unit: mm):
