7.6 to 11.4 GHz SMA-Female LT-CF Series Band Pass Filter for Superior Signal Filtering Solutions
-
Highlight
LT-CF Series Band Pass Filter
,11.4 GHz Band Pass Filter
,SMA-Female Band Pass Filter
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CF-076114S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T, D/A, D/P

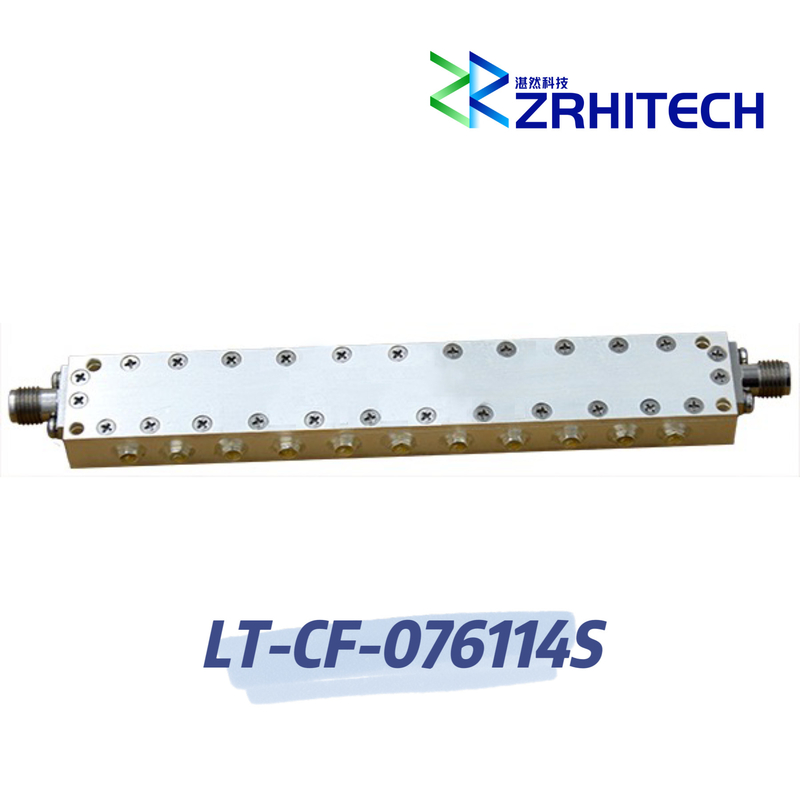

7.6 to 11.4 GHz SMA-Female LT-CF Series Band Pass Filter for Superior Signal Filtering Solutions
7.6 to 11.4 GHz SMA-Female LT-CF Series Band Pass Filter for Superior Signal Filtering Solutions
Quick Detail:
- Suspended Stripline Type
- Center frequency 9.5GHz
- Insertion Loss < 2.5dB
- High Rejection
- Max Power 1 Watts (CW)
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-CF-076114S from ZR is a Band Pass Filter that operates from 7.6 to 11.4 GHz and can handle up to 1 Watt (CW) with 20 dB Rejection and 2.5dB insertion loss. The package interface uses SMA-Female connectors and is REACH and RoHS compliant.
Specifications:
Electrical/Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-CF-076114S | |
| Frequency Range | 7.6 to 11.4 GHz | |
| Center Frequency | 9.5 GHz | |
| Return Loss | 9.5dB Min. | |
| Insertion Loss | 2.5 dB Max. | |
| Rejection@7.45GHz | 20dB Min. | |
| Rejection@11.55GHz | 20dB Min. | |
| Input Power | 1 W | |
| Weight | 95 g | |
| Dimension | 105*16*9 mm |
Note: for custom specs, please contact us directly.
Outline Drawing (Unit: mm):
