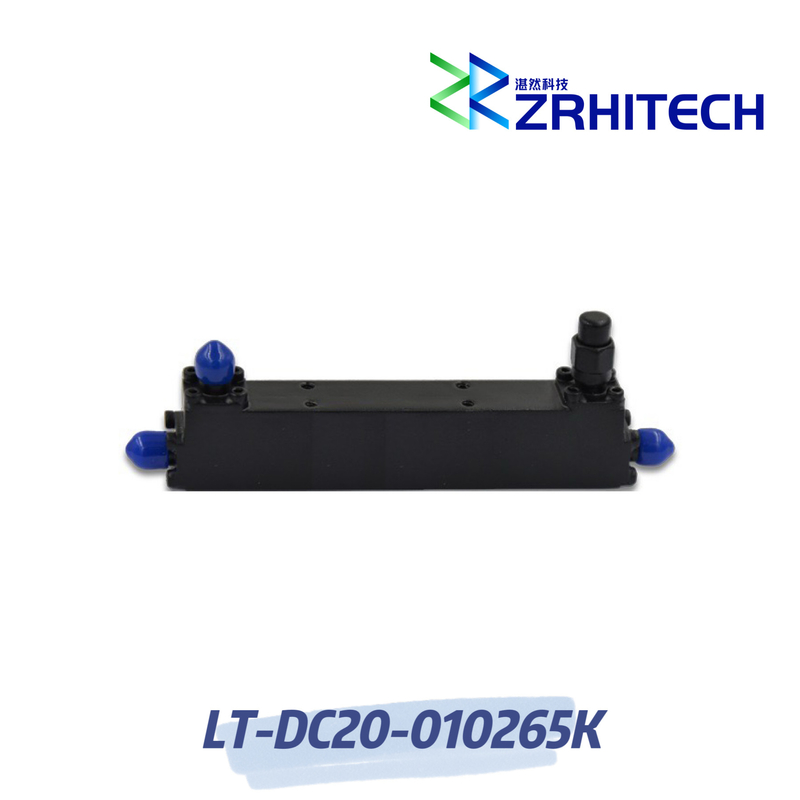

1 to 26.5 GHz 20 Watts LT-DC Series 20dB Directional Coupler
1 to 26.5 GHz 20dB Directional Coupler
Quick Detail:
· 20dB Directional Coupler
· Directivity > 14 dB
· 2.0 to 2.5 GHz Frequency Range
· VSWR < 1.5:1
· Coupling 20±0.7 dB
· Max Power 20 Watts(CW)
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-DC20-010265K from ZR is a 20dB Directional Coupler that operates from 1.0 to 26.5 GHz and can handle up to 20 Watt (CW) with 14 dB directivity and 1.5:1 VSWR,The package interface uses 2.92mm Female connectors and is REACH and RoHS compliant.More details for LT-DC20-010265K can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-DC20-010265K | |
| Frequency Range | 1.0 to 26.5 GHz | |
| Coupling | 20±0.7 dB | |
| Impedance | 50 Ohms | |
| Main Line VSWR | 1.5:1 Max. | |
| Coupling VSWR | 1.5:1 Max. | |
| Insertion Loss | 1.2 dB Max. | |
| Frequency Balance | 1.4 dB Max. | |
| Directivity | 14 dB Min. | |
| Input Power | 20 W | |
| Connectors | 2.92mm-Female | |
| Weight | 80 g | |
| Dimension | 88.9*17.8*12.7 mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
Our products are sold all over the world, you can rest assured.
