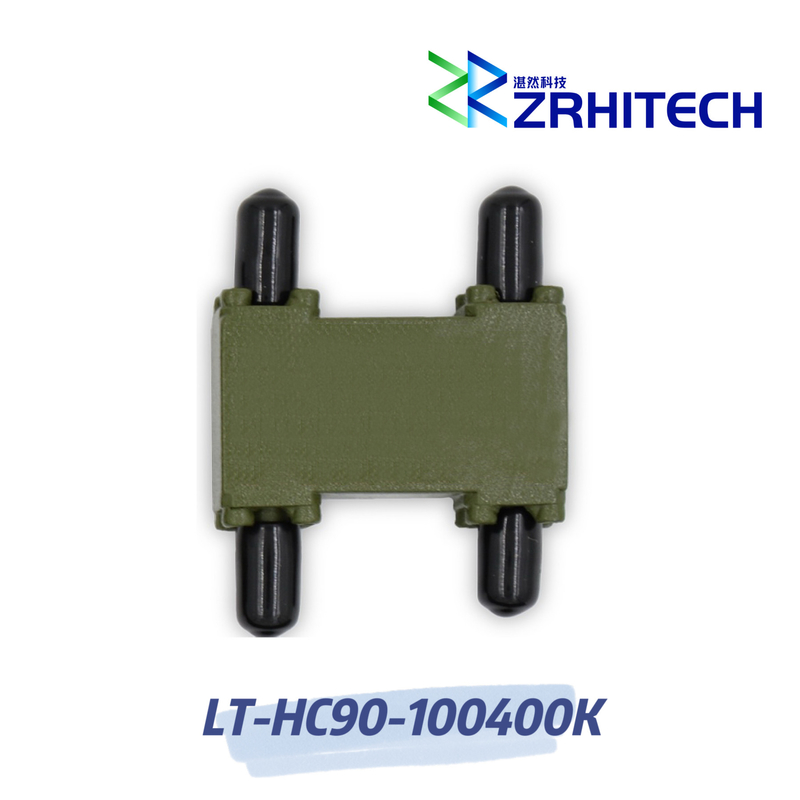

10 to 40 GHz 20 Watts LT-PD Series 90deg Hybrid Coupler
10 to 40 GHz 20 Watts LT-PD Series 90deg Hybrid Coupler
Product Overview
The LT-HC90-100400K from ZR is a high-performance 3dB 90deg Hybrid Coupler designed for applications requiring 10 to 40 GHz frequency range with 20 Watt (CW) power handling capability. Featuring 20 dB isolation and 1.8:1 VSWR, this coupler comes with 2.92mm Female connectors and is REACH and RoHS compliant.
Key Features
- 90deg Hybrid Coupler with 3dB nominal coupling
- Broad frequency range: 10 to 40 GHz
- High directivity: > 14 dB
- Low VSWR: < 1.5:1
- Maximum power handling: 20 Watts (CW)
- Operating temperature range: -55°C to +85°C
- Compliance: CE, RoHS, REACH
- 1 Year Warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-HC90-100400K | |
| Frequency Range | 10 to 40 GHz | |
| Nominal Coupling | 3 dB | |
| Phase Difference | 90deg | |
| VSWR | 1.8:1 Max. | |
| Insertion Loss | 2.0 dB Max. | |
| Amplitude Balance | 1.8 dB Max. | |
| Phase Balance | 20deg Max. | |
| Isolation | 20 dB Min. | |
| Input Power | 20 W | |
| Connectors | 2.92mm-Female | |
| Weight | 50 g | |
| Dimensions | 43.7 × 21.9 × 12.7 mm |
Note: Custom specifications available upon request.
Outline Drawing
