| Brand Name: | ZR Hi-Tech |
| Model Number: | LT-CR-BT1220Z |
| MOQ: | 1 |
| Delivery Time: | 4 weeks |
| Payment Terms: | T/T |
| Attribute | Value |
|---|---|
| Product name | LT-CR series temperature-compensated crystal oscillator |
| Application | Satellite communication, military communication equipment, base station, test and measurement equipment |
| Features | Three-stage bell temperature crystal oscillator, optional three-state control function, high precision, low phase noise, There are anti-overload products for choice, anti-overload > 30000g |
| Material | Aluminum |
| Temperature | -50℃ ~ +85℃ |
| Frequency range | 50MHz~156.25MHz |
| Voltage | 3.3/5V |
| Color | Silver |
50~156.25MHz 20×12mm, Vibration Insensitive, High Precision & Low Phase noise TCXO
The LT-CR-BT1220Z is the newest addition to ZR's line of TCXOs. The standard part offers an ultra-tight stability of ±0.2ppm to ±2.0ppm over -50ºC to +85ºC across a supply voltage range of 3.3V / 5.0V. The bt1220-z uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 20.2 mm x 12.6 mm x 7.35 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.
| Items | Specification | Condition |
|---|---|---|
| Part Number | bt1220-z | |
| Frequency Range | 50MHz~156.25MHz | |
| Operating Voltage(VCC) | 3.3V / 5V | |
| Operating Temperature | -50℃~+85℃ | |
| Freq. Stability Vs. Temp. | ±0.2ppm ~±2.0ppm | -20℃~+70℃@Height above 6mm |
| Frequency Tolerance | ±0.5ppm~±1.5ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | Sine Wave | |
| Voltage-controlled voltage | 1.5V±1.0V | |
| Phase Noise |
<-145dBc@50~100MHz @1kHz <-140dBc@50~100MHz@102.4~122.88MHz <-135dBc@50~100MHz@102.4~122.88MHz@125~156.25MHz <-130dBc@50~100MHz@102.4~122.88MHz@125~156.25MHz |
|

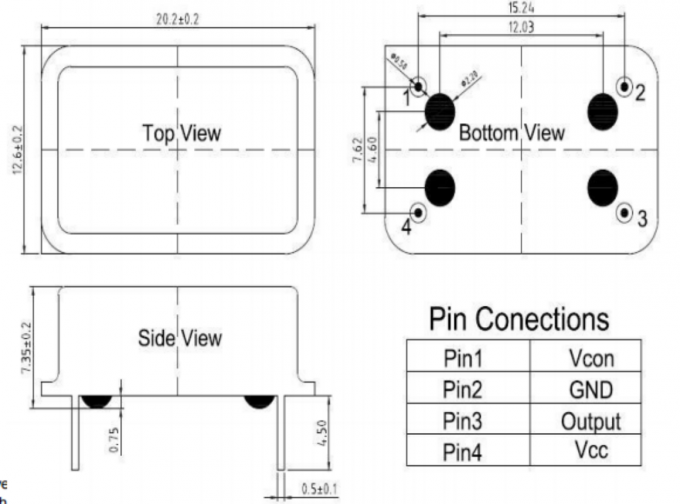

| Dimension | 20.2 mm x 12.6 mm x 7.35 mm |
