156.25 MHz High Precision Low Phase Noise TCXO 9.2×14.2mm for Satellite Communication Needs

Name: 156.25 MHz High Precision Low Phase Noise TCXO 9.2×14.2mm for Satellite Communication Needs
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-CR-BT0914AZ
Availability: InStock

Brand Name:	ZR Hi-Tech
Model Number:	LT-CR-BT0914AZ
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Features:

Three-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g

Product Name:

LT-CR Series Temperature-compensated Crystal Oscillator

Application:

Satellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment

Material:

Aluminum

Temperature:

±0.28ppm ~±2.0ppm

Frequency Range:

50MHz~156.25MHz

Voltage:

3.3V/5V

Color:

Silver

Packaging Details:

carton packing

Highlight:

156.25 MHz TCXO Oscillators

Satellite Communication TCXO

Low Phase Noise TCXO

Product Description

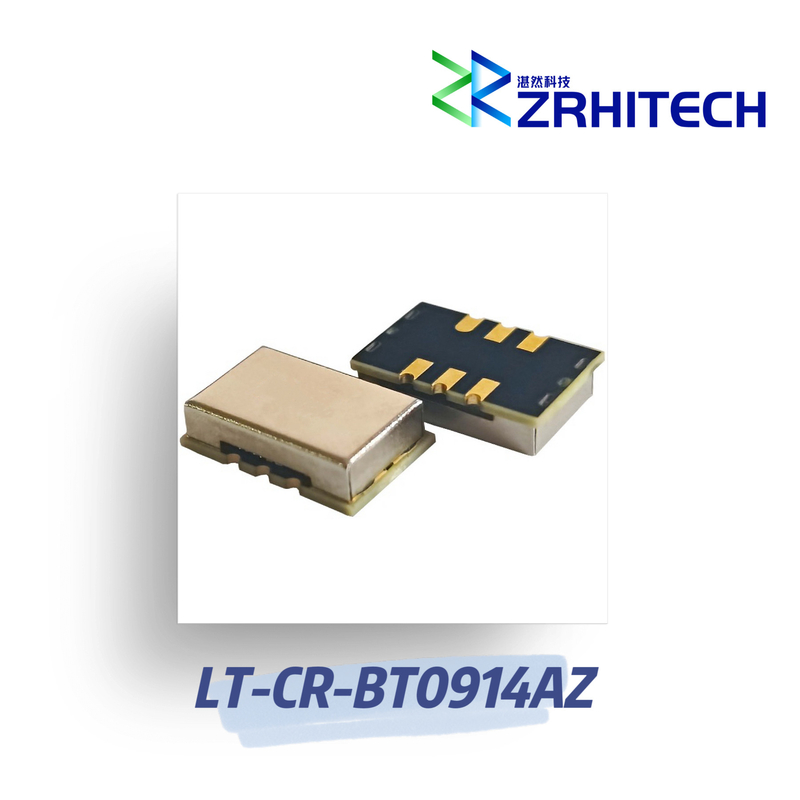

156.25 MHz High Precision Low Phase Noise TCXO 9.2×14.2mm for Satellite Communication

Key Features

Aluminum housing for durability
3.3V / 5V VCC options for flexible integration
Wide operating temperature range: -50℃ to +85℃
Compact 9.2×14.2mm package
High precision with ±0.28ppm to ±2.0ppm stability
Low phase noise performance
Optional three-state control function
Exceptional anti-overload resistance (>30000g)
Compliance with CE, RoHS, and REACH standards
1-year warranty for quality assurance

Product Overview

The LT-CR-BT0914AZ temperature-compensated crystal oscillator (TCXO) represents the latest advancement in ZR's precision timing solutions. Designed for demanding applications, this TCXO delivers ultra-tight stability of ±0.28ppm to ±2.0ppm across an extensive temperature range (-50℃ to +85℃) and voltage range (3.3V/5.0V). Its high refresh rate ensures consistent linear frequency output during temperature compensation.

Technical Specifications

Parameter	Specification	Conditions
Part Number	LT-CR-BT0914AZ
Frequency Range	50MHz~156.25MHz
Operating Voltage	3.3V / 5V
Operating Temperature	-50℃~+85℃
Frequency Stability	±0.28ppm ~±2.0ppm	-40℃~+85℃ @ Height above 6mm
Frequency Tolerance	±0.5ppm~±1.0ppm	At shipment, nominal EFC, +25℃
Output Waveform	Sine Wave
Phase Noise	<-145dBc @ 50~100MHz @1kHz <-140dBc @ 102.4~122.88MHz <-135dBc @ 125~156.25MHz <-130dBc @ 125~156.25MHz
Dimensions	14.65 mm × 9.35 mm

Applications

This high-performance TCXO is ideally suited for:

Satellite communication systems
Military communication equipment
Base station infrastructure
Test and measurement instruments

Product Dimensions

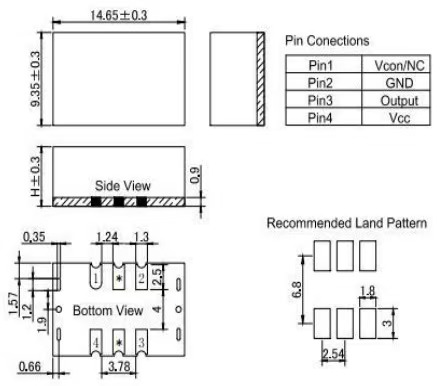

Technical drawing of LT-CR-BT0914AZ TCXO showing dimensions 14.65mm × 9.35mm
