Highlight
Ultra Stable TCXO
,Stratum Ⅲ Level TCXO
,3.2×2.5mm TCXO
-
FeaturesThree-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
-
Product NameLT-CR Series Temperature-compensated Crystal Oscillator
-
ApplicationSatellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
-
MaterialAluminum
-
Temperature-40℃~+105℃
-
Frequency Range23.768KHz
-
Voltage-0.5/6V
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-

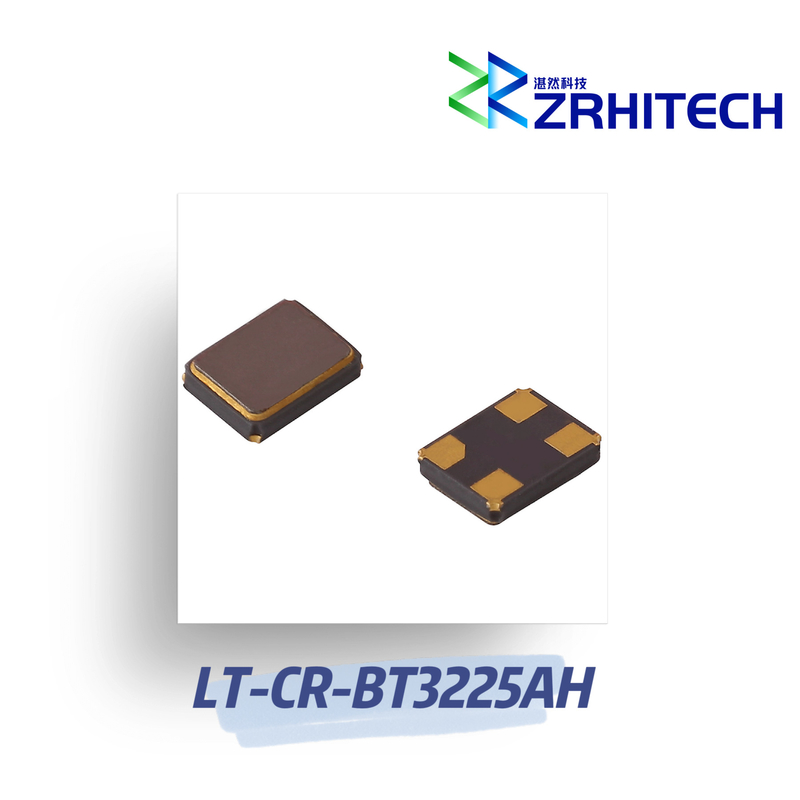

Model NumberLT-CR-BT3225AH
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
20~60MHz 3.2×2.5mm , Ultra Stable Stratum Ⅲ Level TCXO
20~60MHz 3.2×2.5mm, Ultra Stable Stratum Ⅲ Level TCXO
Product Overview
The LT-CR series temperature-compensated crystal oscillator delivers exceptional stability and precision for demanding applications in satellite and military communications, base stations, and test equipment.
Key Features
- Three-stage bell temperature crystal oscillator design
- Optional three-state control function
- High precision with ultra-tight stability (±0.28ppm to ±1.0ppm)
- Low phase noise performance
- Anti-overload capability > 30000g
- Compact 3.2 × 2.5 × 1.5mm ceramic package
- Available in 1,000- or 3,000-piece reels
- CE, RoHS, and REACH compliant
- 1-year warranty
Technical Specifications
| Attribute | Value |
|---|---|
| Product Name | LT-CR series temperature-compensated crystal oscillator |
| Material | Aluminum housing |
| Operating Temperature | -40℃ to +105℃ |
| Frequency Range | 20MHz to 60MHz |
| Operating Voltage | -0.5V to 6V |
| Frequency Stability | ±0.28ppm to ±1.0ppm (-40℃ to +105℃) |
| Phase Noise | -95dBc@10Hz, -120dBc@100Hz, -140dBc@1kHz, -150dBc@10kHz, -155dBc@100kHz |
| Output Waveform | LVCMOS |
Applications
- Satellite communication systems
- Military communication equipment
- Base station infrastructure
- Test and measurement equipment
Product Dimensions
