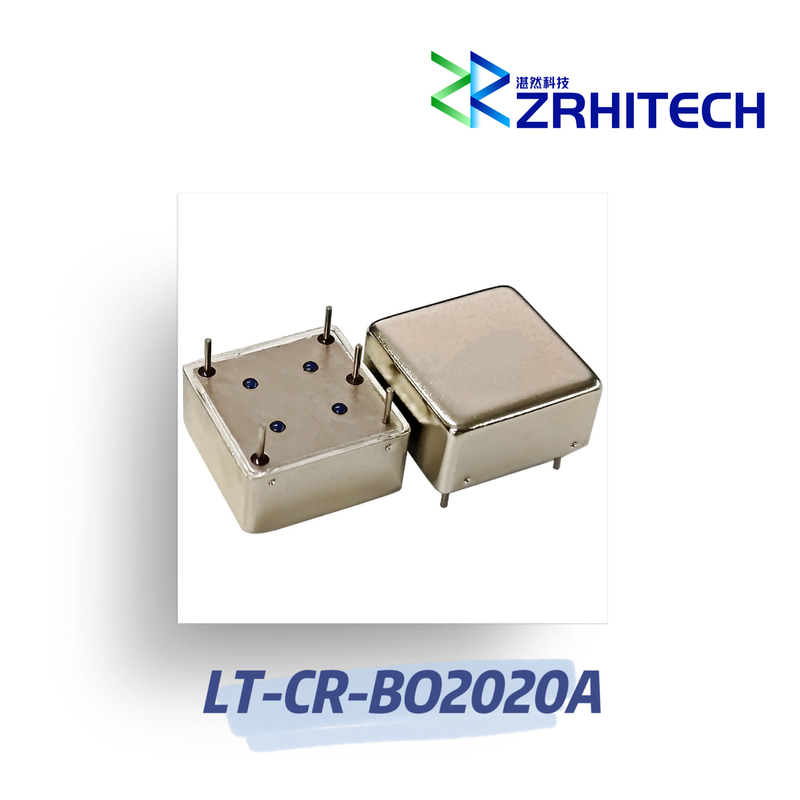

Frequency Range 5MHz-200MHz Ultra Stable OCXO Wide Temperature Range 20.0mm*20.0mm
-
Highlight
200MHz OCXO
,200MHz OCXO
,20.0mm*20.0mm OCXO
-
FeaturesLow Phase Noise
-
Product NameOven Controlled Crystal Oscillator (OCXO)
-
ApplicationSatellite Communications, Base Stations, Measuring Instruments, Etc
-
MaterialAluminum
-
Temperature-55~85℃
-
Frequency Range5MHz~200MHz
-
Voltage3.3V/5.0V
-
ColorBlack
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-BO2020A
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
Frequency Range 5MHz-200MHz Ultra Stable OCXO Wide Temperature Range 20.0mm*20.0mm
5MHz to 200MHz 20.0mm*20.0mm, Wide Temperature Range, Ultra Stable OCXO
Quick Detail:
· Aluminum housing
· 3.3V/5V Operating Voltage (VCC)
· -55℃~+85℃ operating temperature
· SMD package
· High precision
· Low phase noise
· CMOS or Sine Wave Output Waveform
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-CR-bo2020a is the newest addition to ZR’s line of OCXOs. We provide sinewave or CMOS output waveforms with a phase noise of -100dBc/100MHz (at 10Hz offset) and have a frequency stability of ±50 ppb (vs. temperature). These OCXOs are fabricated using an SC-cut crystal that offers high stability and low aging. They are available in surface-mount packages that measure 20.0 x 20.0 x 10.5 mm. These OCXOs are ideal for satellite communications, base stations, measuring instruments, etc...
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-CR-bo2020a | |
| Frequency Range | 5MHz~200MHz | |
| Operating Voltage(VCC) | 3.3V/5.0V | |
| Setup Power Consumption | ≤4W | |
| Operating Temperature | -55℃~85℃ | |
| Frequency Stability vs. Temperature | ≤±50ppb | -55℃ ~ +85℃ |
| Frequency Tolerance | ≤±0.3ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | Sine Wave | |
| Output Impendance | ||
| Output Power | ||
| Control Voltage(VC) | 3.3V~5V | |
| Voltaged Frequency Range | ||
| Slope | Positive | |
| Linearity | 10% | |
| Input Impedance | ||
| Phase Noise (typ.) |
-100dBc/Hz@10Hz； -130dBc/Hz@100Hz； -155dBc/Hz@1kHz； -160dBc/Hz@10kHz； -170dBc/Hz@100kHz |
Typical Frequency:100MHz At +25℃ |
| Dimension | 20.0 x 20.0 x 10.5 mm | |
| Note: for custom specs, please contact us directly. | ||

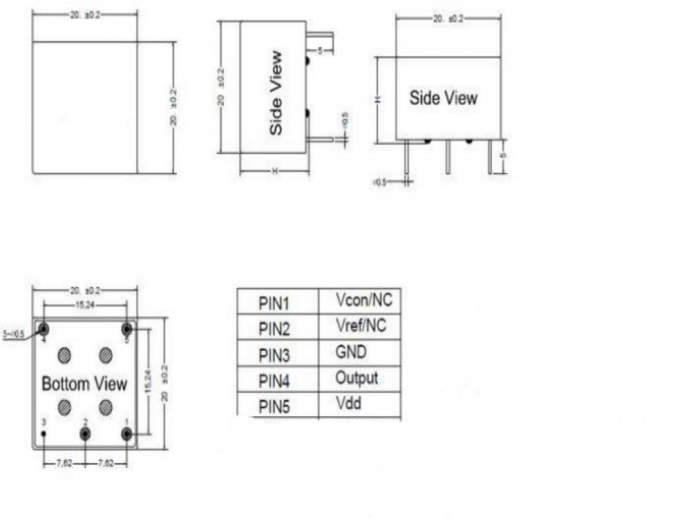

Outline Drawing (Unit: mm):
