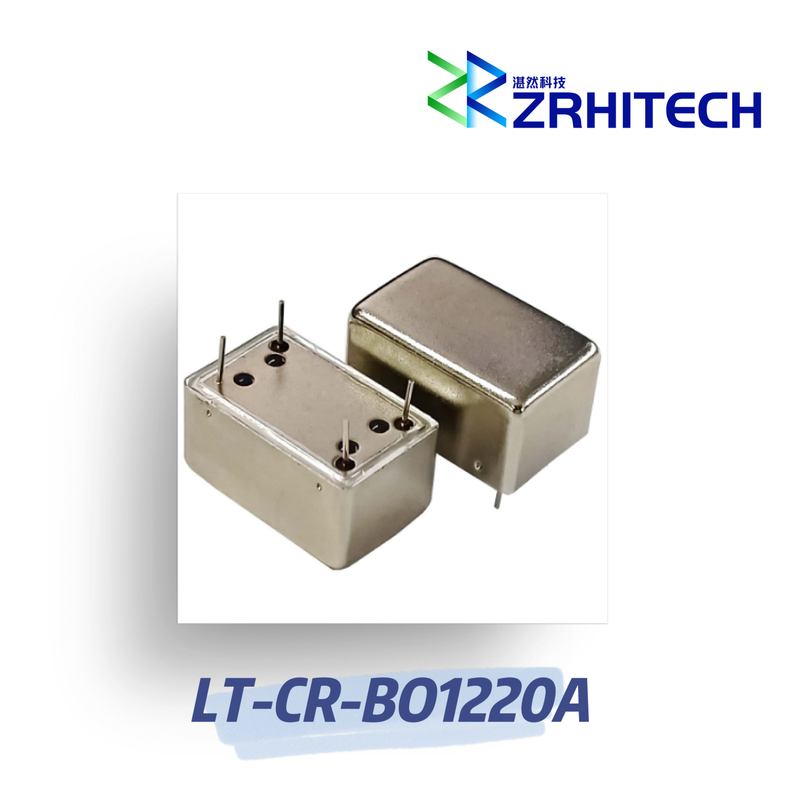

Low Phase Noise Ultra Stable OCXO 20.2mm*12.6mm for 5MHz-200MHz Frequency Range and Wide Temperature Range
-
Highlight
Low Phase Noise OCXO
,Ultra Stable OCXO
,Wide Temperature Range OCXO
-
FeaturesLow Phase Noise
-
Product NameOven Controlled Crystal Oscillator (OCXO)
-
ApplicationSatellite Communications, Base Stations, Measuring Instruments, Etc
-
MaterialAluminum
-
Temperature-55~85℃
-
Frequency Range5MHz~200MHz
-
Voltage3.3V/5.0V
-
ColorBlack
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-BO1220A
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
Low Phase Noise Ultra Stable OCXO 20.2mm*12.6mm for 5MHz-200MHz Frequency Range and Wide Temperature Range
Low Phase Noise Ultra Stable OCXO 20.2mm × 12.6mm
Product Overview
The LT-CR-bo1220a is a premium Oven Controlled Crystal Oscillator (OCXO) designed for applications requiring exceptional frequency stability and low phase noise performance. With a compact 20.2 × 12.6 × 11.0 mm SMD package, this OCXO delivers high precision across a wide temperature range of -55℃ to +85℃.
Key Features
- Frequency range: 5MHz to 200MHz
- Operating voltage: 3.3V or 5.0V options
- Aluminum housing for durability
- Low phase noise: -100dBc/Hz at 10Hz offset
- Frequency stability: ±100 ppb over temperature range
- CMOS or Sine Wave output options
- Compliance: CE, RoHS, REACH
- 1-year warranty
Applications
Ideal for demanding applications including satellite communications, base stations, and precision measuring instruments where stable frequency references are critical.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-BO1220A | |
| Frequency Range | 5MHz~200MHz | |
| Operating Voltage | 3.3V/5.0V | |
| Power Consumption | ≤2.5W | Setup |
| Operating Temperature | -55℃~85℃ | |
| Frequency Stability | ≤±100ppb | -55℃ ~ +85℃ |
| Frequency Tolerance | ≤±0.1ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | Sine Wave | |
| Phase Noise (typ.) | -100dBc/Hz@10Hz -130dBc/Hz@100Hz -155dBc/Hz@1kHz -160dBc/Hz@10kHz -170dBc/Hz@100kHz |
Typical Frequency:100MHz At +25℃ |
| Dimensions | 20.2 × 12.6 × 11.0 mm |

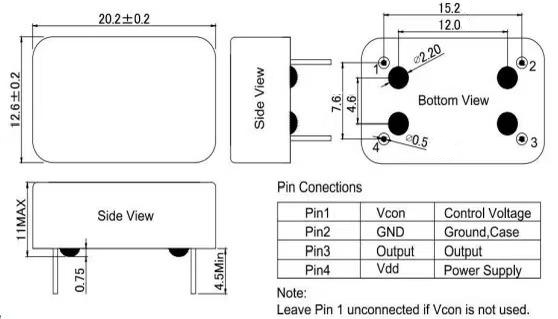

Product Dimensions
Note: Custom specifications available upon request. Please contact us for tailored solutions.
