10MHz to 52MHz 7.0X5.0mm SMD Stratum Ⅲ Level Ultra Stable with Wide Temperature Range TCXO
-
Highlight
7.0X5.0mm TCXO
,Wide Temperature Range TCXO
,Ultra Stable TCXO
-
FeaturesThree-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
-
Product NameLT-CR Series Temperature-compensated Crystal Oscillator
-
ApplicationSatellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
-
MaterialAluminum
-
Temperature±0.05ppm ~±0.5ppm
-
Frequency Range10MHz~52MHz
-
Voltage-0.5V/6V
-
ColorBlack
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-

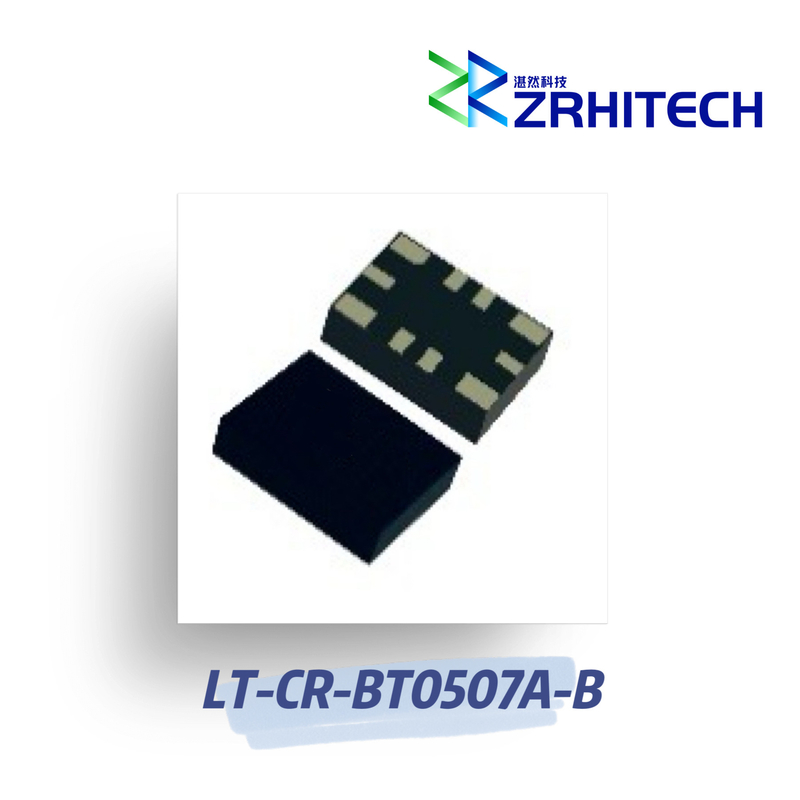

Model NumberLT-CR-BT0507A-B
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
10MHz to 52MHz 7.0X5.0mm SMD Stratum Ⅲ Level Ultra Stable with Wide Temperature Range TCXO
10MHz to 52MHz 7.0X5.0mm SMD Stratum Ⅲ Level Ultra Stable with Wide Temperature Range TCXO
Product Overview
| Product name | LT-CR series temperature-compensated crystal oscillator |
|---|---|
| Application | Satellite communication, military communication equipment, base station, test and measurement equipment |
| Features | Three-stage bell temperature crystal oscillator, optional three-state control function, high precision, low phase noise, anti-overload > 30000g |
| Material | Aluminum |
| Temperature | ±0.05ppm ~±0.5ppm |
| Frequency range | 10MHz~52MHz |
| Voltage | -0.5V/6V |
| Color | Black |
Key Features
- Aluminum housing
- -0.5/6V VDD options
- -55℃~95℃ operating temperature
- Compact 7.0×5.0×1.9mm package
- High precision and low phase noise
- Optional three-state control function
- Anti-overload > 30000g
- CE, RoHS, REACH compliant
- 1 Year Warranty
Product Description
The LT-CR-BT0507A-B is the newest addition to ZR's line of TCXOs. This standard part offers ultra-tight stability of ±0.5ppm to ±1.0ppm over -55ºC to +95ºC across a supply voltage range of -0.5V /6V. The bt0507a-b uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The compact 7.0 mm x 5.0 mm x 1.9 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base stations, and test and measurement equipment.
Technical Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-BT0507A-B | |
| Frequency Range | 10MHz~52MHz | |
| Operating Voltage | -0.5V / 6V | |
| Working temperature range | -55℃~+95℃ | |
| Frequency Stability vs. Temperature | ±0.1ppm ~±0.5ppm | -40℃~+85℃ |
| Initial accuracy of reference temperature | ±0.3ppm~±0.5ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | LVCMOS, Clipped Sine Wave | |
| Output Load | 50Ω | |
| Phase noise (typical) | <-140dBc@10MHz <-135dBc@10MHz@12.8MHz~20MHz <-130dBc@10MHz@12.8MHz~20MHz @20.48MHz~38.4MHz <-125dBc@10MHz@12.8MHz~20MHz @20.48MHz~38.4MHz@≥40MHz | |
| Dimension | 7.0×5.0×1.9mm |
Note: For specifications beyond the above table, please contact us for customization.

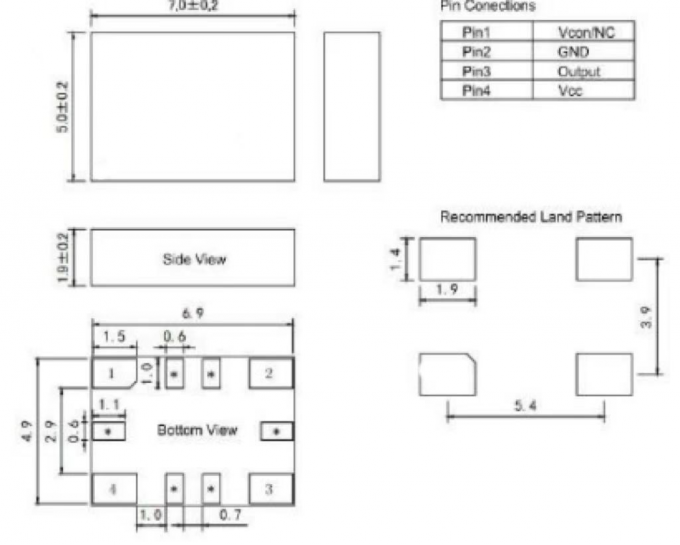

Outline Drawing
