| Brand Name: | ZR Hi-Tech |
| Model Number: | LT-CR-BT0503C |
| MOQ: | 1 |
| Delivery Time: | 4 weeks |
| Payment Terms: | T/T |
| Attribute | Value |
|---|---|
| Product name | LT-CR series temperature-compensated crystal oscillator |
| Application | Satellite communication, military communication equipment, base station, test and measurement equipment |
| Features | Three-stage bell temperature crystal oscillator, optional three-state control function, high precision, low phase noise, There are anti-overload products for choice, anti-overload > 30000g |
| Material | Aluminum |
| Temperature | ±0.05ppm ~±0.5ppm |
| Frequency range | 10MHz~52MHz |
| Voltage | -0.5V/6V |
| Color | Black |

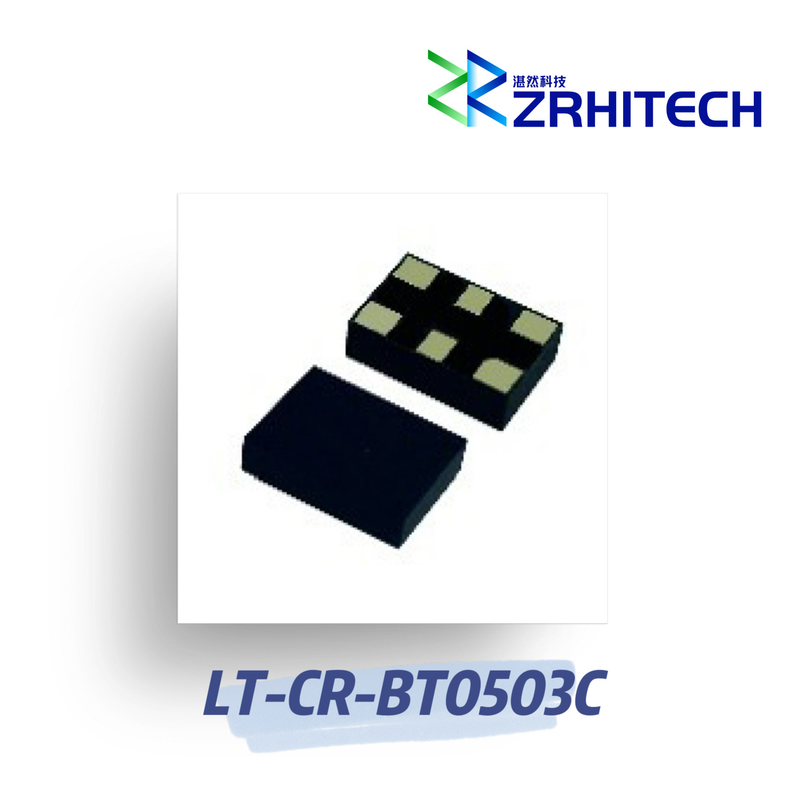

10~52MHz 5.2X3.4mm, SMD, Ultra Stable, Fast Warming-Up TCXO
The LT-CR-BT0503C is the newest addition to ZR's line of TCXOs. The standard part offers an ultra-tight stability of ±0.5ppm to ±0.1ppm over -55ºC to +95ºC across a supply voltage range of -0.5V /6V. The bt0503c uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 5.2 mm x 3.4 mm x 1.6 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.
Electrical / Optical Characteristics (Ta=25℃± 3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-BT0503C | |
| Frequency Range | 10MHz~52MHz | |
| Operating Voltage | -0.5V / 6V | |
| Operating current | / | |
| Working temperature range | -55℃~+95℃ | |
| Frequency Stability vs. Temperature | ±0.3ppm~±1.0ppm | -40℃~+85℃ |
| Initial accuracy of reference temperature | ±0.5ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | CMOS,Clipped Sine wave | |
| Output Load | 50Ω | |
| Output power | / | |
| Harmonic wave | / | |
| Stray | / | |
| Phase noise(typical) | <-140dBc@10MHz <-135dBc@10MHz@12.8MHz~20MHz <-130dBc@10MHz@12.8MHz~20MHz @20.48MHz~38.4MHz <-125dBc@10MHz@12.8MHz~20MHz @20.48MHz~38.4MHz@≥40MHz | |
| Acceleration sensitivity | / | |
| Dimension | 5.2×3.4×1.6mm |
