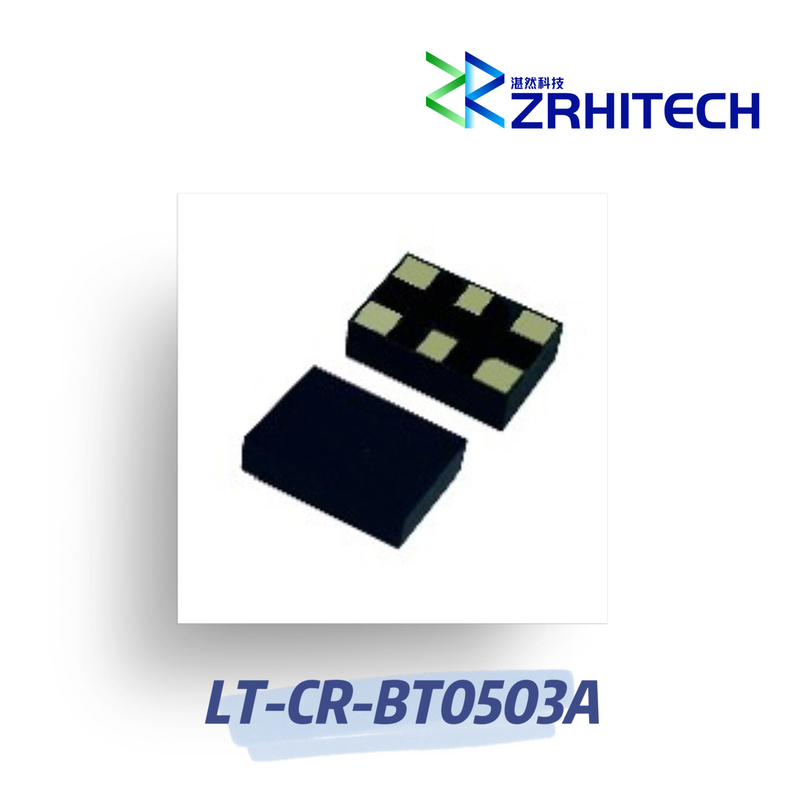

10MHz to 52MHz 5.0X3.2mm Analog Circuit High Stable Low Phase Noise TCXO
10MHz to 52MHz 5.0X3.2mm, Analog Circuit, High Stable, Low Phase Noise TCXO
Quick Detail:
· Aluminum housing
· -0.5/6V VDD options
· -40℃~85℃ operating temperature
· Small package
· High precision
· Low phase noise
· Optional three-state control function
· Anti-overload > 30000g
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-CR-BT0503A is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.05ppm to ±0.5ppm over -40ºC to +85ºC across a supply voltage range of -0.5V/6V. The bt0503a uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 5.0 mm x 3.2 mm x 1.2 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-CR-BT0503A | |
| Frequency Range |
10MHz~52MHz |
|
| Operating Voltage |
-0.5V / 6V |
|
| Operating current | / | |
| Working temperature range |
-40℃~+85℃ |
|
| Frequency Stability vs. Temperature |
±0.05ppm ~±0.5ppm |
-40℃~+85℃ |
| Initial accuracy of reference temperature |
±0.5ppm |
At shipment, nominal EFC, +25℃ |
| Output Waveform |
HCMOS |
|
| Output Load | 50Ω | |
| Output power | / | |
| Harmonic wave | / | |
| Stray | / | |
| Phase noise(typical) |
<-150dBc@10MHz <-145dBc@16MHz~40MHz <-140dBc@50MHz |
|
| Acceleration sensitivity | / | |
| Dimension |
5.0×3.2×1.2mm |
|
| Note: For specifications beyond the above table, please contact us for customization. | ||

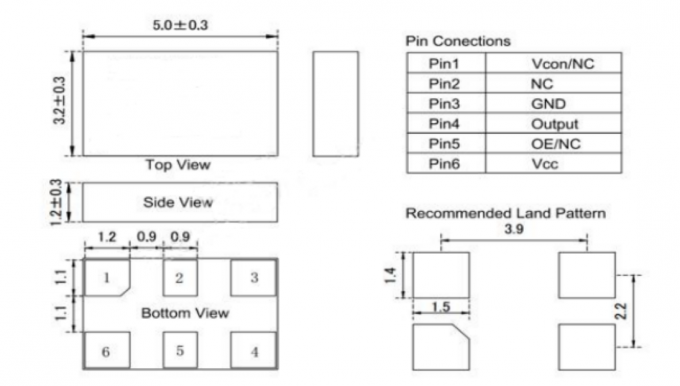

Outline Drawing (Unit: mm):
Our products are sold all over the world, you can rest assured.
