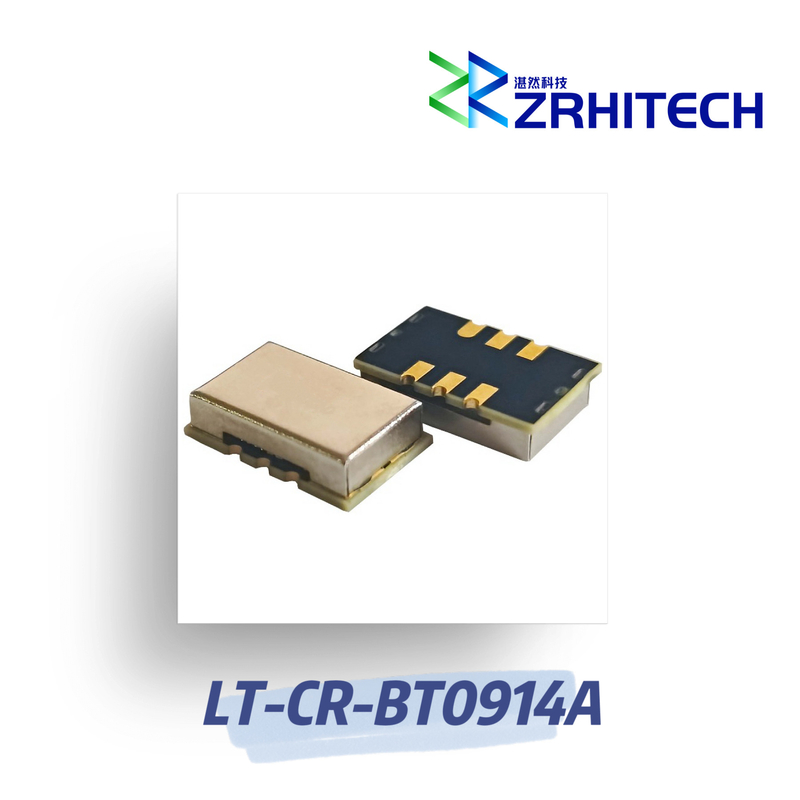

Ultra Stable 9.35x14.65mm TCXO Oscillators for Test and Measurement Equipment Low Phase Noise 10MHz to 125MHz in Silver
-
Highlight
Silver TCXO Oscillators
,Low Phase Noise TCXO Oscillators
,10MHz to 125MHz TCXO
-
FeaturesThree-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
-
Product NameLT-CR Series Temperature-compensated Crystal Oscillator
-
ApplicationSatellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
-
MaterialAluminum
-
Temperature±0.1ppm ~±2.0ppm
-
Frequency Range10MHz~125MHz
-
Voltage3.3V/5V
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-BT0914A
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
Ultra Stable 9.35x14.65mm TCXO Oscillators for Test and Measurement Equipment Low Phase Noise 10MHz to 125MHz in Silver
10MHz to 125MHz 9.35*14.65mm, Ultra Stable, Low Phase Noise TCXO
Quick Detail:
· Aluminum housing
· 3.3V / 5V VCC options
· -50℃~85℃ operating temperature
· Small package
· High precision
· Low phase noise
· Optional three-state control function
· Anti-overload > 30000g
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-CR-BT0914A is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.1ppm to ±2.0ppm over -50ºC to +85ºC across a supply voltage range of 3.3V / 5.0V. The bt0914a uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 14.65 mm x 9.35 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-CR-BT0914A | |
| Frequency Range |
10MHz~125MHz |
|
| Operating Voltage |
3.3V / 5V |
|
| Operating current | / | |
| Working temperature range |
-50℃~+85℃ |
|
| Frequency Stability vs. Temperature |
±0.1ppm ~±2.0ppm |
-40℃~+85℃ *Height≥7mm |
| Initial accuracy of reference temperature |
±0.3ppm~±1.0ppm |
At shipment, nominal EFC, +25℃ |
| Output Waveform |
CMOS,Sine wave |
|
| Output Load | 50Ω | |
| Output power | / | |
| Harmonic wave | / | |
| Stray | / | |
| Phase noise(typical) |
<-150dBc@10MHz~20MHz <-145dBc@10MHz~100Hz <-140dBc@10MHz~100Hz@>100MHz <-135dBc@10MHz~100Hz@>100MHz |
@+25℃ |
| Acceleration sensitivity | / | |
| Dimension | 14.65×9.35mm | |
| Note: For specifications beyond the above table, please contact us for customization. | ||
Outline Drawing (Unit: mm):
